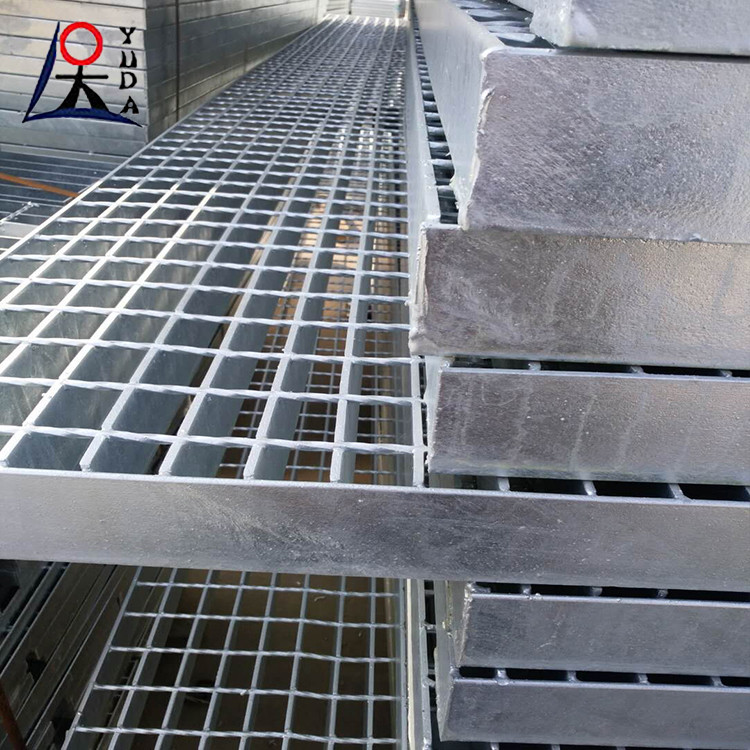

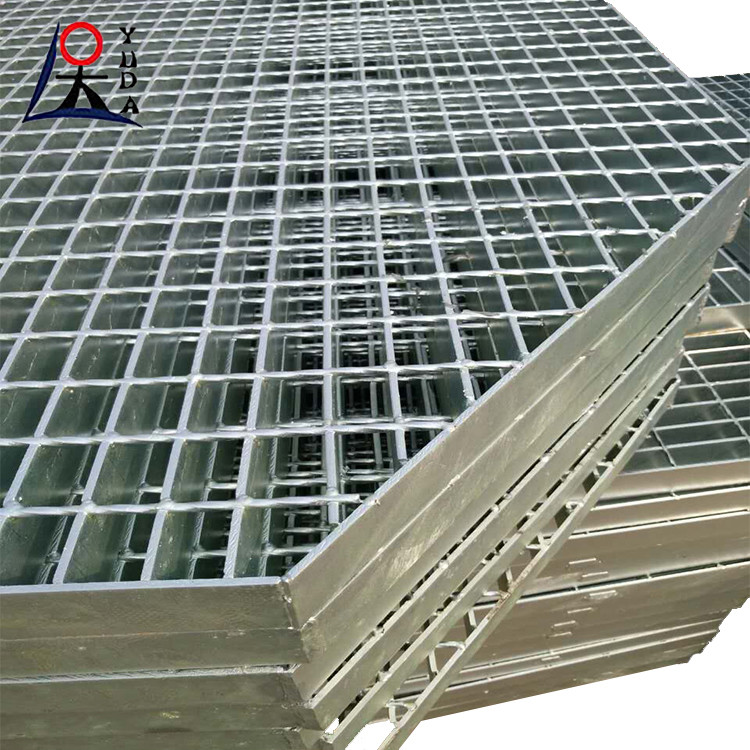

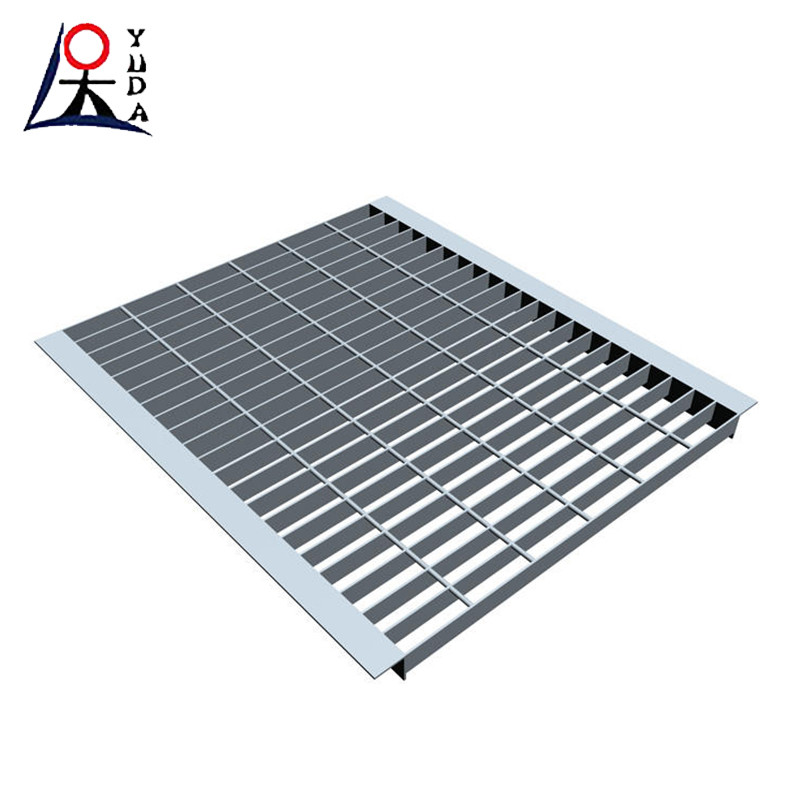

Offshore Platform Steel Grating Toothed Steel Grating Anti Slip 6mm
Product Specifications
| Attribute |
Value |
| Product Name |
Steel Grating |
| Materials |
Low carbon steel, Stainless steel, Aluminum alloy, FRP |
| Processing Technology |
Pressure welding, Pressure Locked |
| Cross Bar Height |
6mm |
| Cross Bar Shape |
Twisted Square |
| Material |
Steel |
| Load Capacity |
Heavy Duty |
Technical Details
Bearing Bar Size: Flat steel: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm, etc.
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm
Twisted Cross Bar Pitch: 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
Material Grade: ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel
Surface Treatment: Black, self-colour, hot dip galvanized, painted, spray coating
Grating Style: Plain / Smooth, Serrated / teeth, I bar, serrated I bar
Key Features
- Anti-slip and drainage: Open hole design prevents water accumulation and slip accidents
- Heavy-duty support: Strong structure capable of carrying heavy equipment and vehicles
- Ventilation and light transmission: Promotes air circulation and natural lighting
- Versatile applications: Suitable for platforms, walkways, industrial facilities, bridges, and security fences
Packaging Details
- Each grating labeled with panel number for easy identification
- Steel brackets used to secure package (4 pcs for panels under 1500x1000mm)
- PVC tape bundling for secure transport
- Thermoplastic tags attached to each package
- Plastic film wrapping for protection
Compliance Standards
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Germany: DIN24537-1-2006
Japan: JIS
