Name: Alkali Resistant Fiberglass Mesh for Wall Construction 4x4mm 5x5mm
Brand: Anping Yuda Wire Mesh Co., Ltd.
SKU: Glass fibre mesh
Price: 0.15 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Fiberglass Mesh

Key Words: Alkali Resistant Reinforced Wall Construction Fiberglass Facade Mesh Fiberglass Mesh

Material: Fiberglass Yarn

Apertue: 4*4mm,5*5mm Etc.

Feature: Alkaline-resistant

Size: 1x50m,20cm*300m,5cmx90m

Weave Type: Leno, Plain, Twill

Artwork: Leno Woven

Highlight:

Alkali Resistant Fiberglass Mesh

Construction fibreglass reinforcing mesh

Alkali Resistant fiberglass mesh for concrete

Basic Infomation

Place of Origin: CHINA

Brand Name: YUDA

Certification: IOS

Model Number: Glass fibre mesh

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Customized according to buyer's requirements

Delivery Time: 3-10 day

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5000 rolls/ day

Gallery

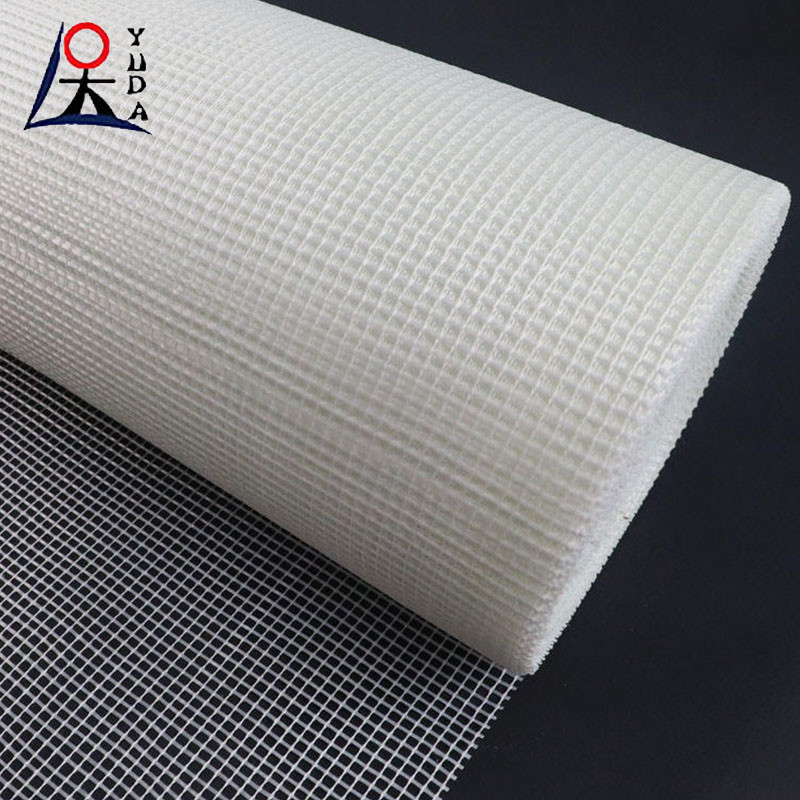

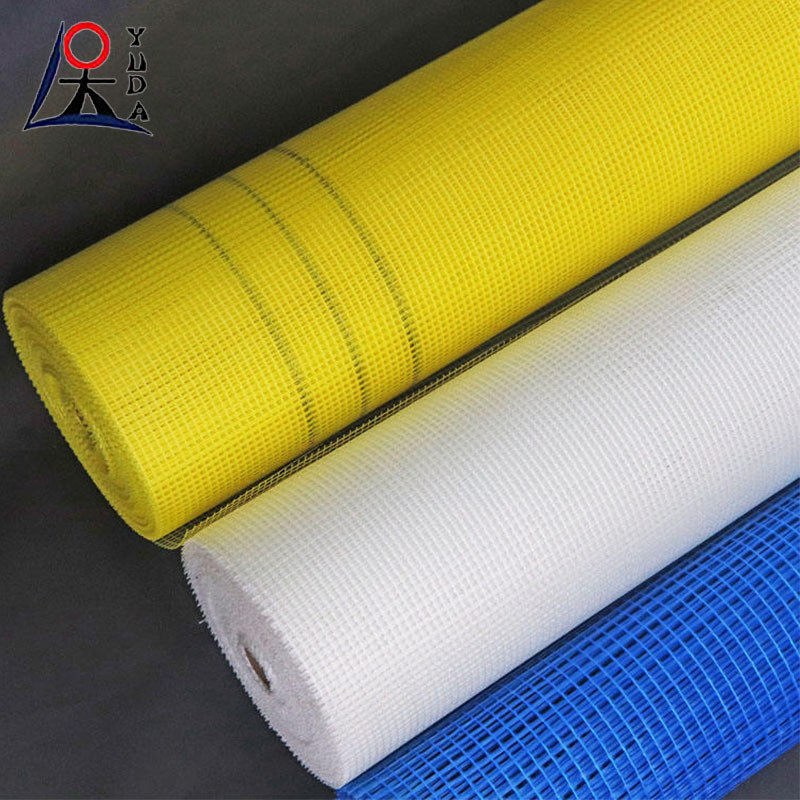

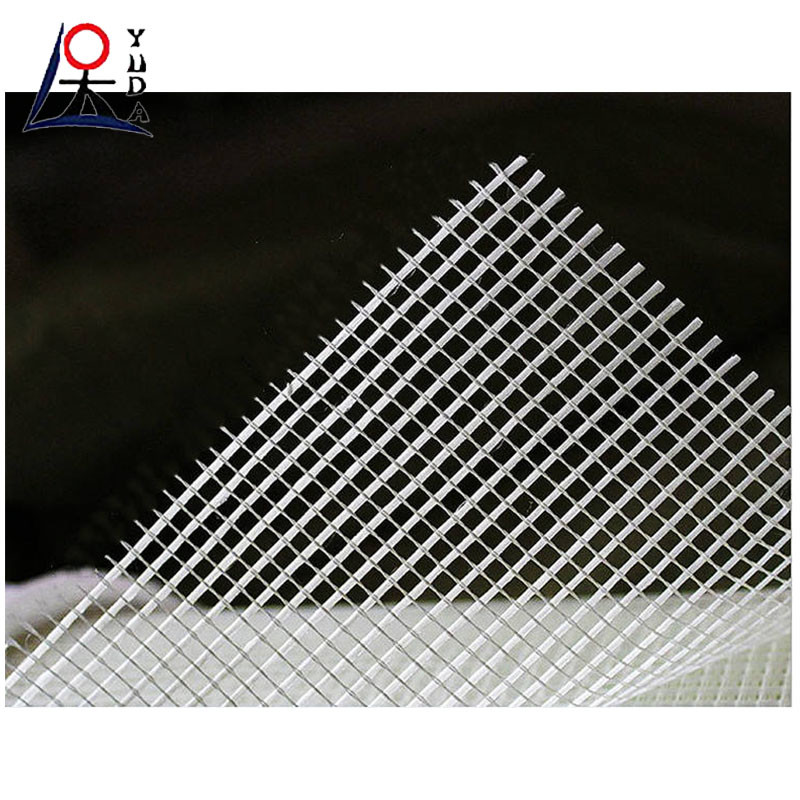

Alkali Resistant Fiberglass Mesh for Wall Construction 4x4mm 5x5mm

Product Description

Alkali Resistant Reinforced Wall Construction Fiberglass Facade Mesh

Product Attributes

Attribute	Value
Product Name	Fiberglass Mesh
Material	Fiberglass Yarn
Aperture	4×4mm, 5×5mm etc.
Feature	Alkaline-resistant
Size	1×50m, 20cm×300m, 5cm×90m
Weave Type	Leno, Plain, Twill
Artwork	Leno Woven

Glass Fiber Mesh Cloth

Glass fiber woven fabric serves as the base material for glass fiber mesh cloth, widely used in building internal and external wall insulation, waterproofing, fire prevention, and crack resistance applications. It offers excellent alkali resistance, flexibility, and high tension resistance.

The mesh cloth is manufactured using alkali-free glass fiber yarn (primarily composed of silicate for superior chemical stability) through a special organizational structure - yarn fabric skein woven. The material undergoes anti-alkali liquor treatment, reinforcing agent application, and high-temperature heat setting.

Reinforced Fiberglass Wall Mesh Specifications

Item Number	Yarn (Tex)	Mesh (mm)	Density Count/25mm	Tensile Strength × 20cm	Woven Structure	Content of Resin %
45g2.5×2.5	33×2 \| 33	2.5 \| 2.5	10 \| 10	550 \| 300	Leno	18
60g2.5×2.5	40×2 \| 40	2.5 \| 2.5	10 \| 10	550 \| 650	Leno	18
70g 5×5	45×2 \| 200	5 \| 5	5 \| 5	550 \| 850	Leno	18
80g 5×5	67×2 \| 200	5 \| 5	5 \| 5	700 \| 850	Leno	18
90g 5×5	67×2 \| 250	5 \| 5	5 \| 5	700 \| 1050	Leno	18
110g 5×5	100×2 \| 250	5 \| 5	5 \| 5	800 \| 1050	Leno	18
125g 5×5	134×2 \| 250	5 \| 5	5 \| 5	1200 \| 1300	Leno	18
135g 5×5	134×2 \| 300	5 \| 5	5 \| 5	1300 \| 1400	Leno	18
145g 5×5	134×2 \| 360	5 \| 5	5 \| 5	1200 \| 1300	Leno	18
150g 4×5	134×2 \| 300	4 \| 5	6 \| 5	1300 \| 1300	Leno	18
160g 5×5	134×2 \| 400	5 \| 5	5 \| 5	1450 \| 1600	Leno	18
160g 4×4	134×2 \| 300	4 \| 4	6 \| 6	1550 \| 1650	Leno	18
165g 4×5	134×2 \| 350	4 \| 5	6 \| 5	1300 \| 1300	Leno	18

Glass Fiber Mesh Specifications

Material: Fiberglass Yarn

Coating: Latex, Urine Glue

Weight: 60g - 300g/m²

Length: 10m-300m

Width: 4.5cm-2m

Color: White (standard), red, yellow, blue, green, gray, black or custom colors

Mesh Size	Density (grams/sqm)	Width (m)	Length per roll (m)
4 × 5	160	4.5cm-2m	10-300m
5 × 5	80,100,125,145	4.5cm-2m	10-300m
6 × 6	240,300	4.5cm-2m	10-300m

Custom specifications available upon request.

Application Guidelines

75g/m²: Used in thin slurry reinforcement to eliminate small cracks and distribute surface pressure.
110g/m²: Ideal for indoor/outdoor walls to prevent cracks caused by various materials (brick, light wood, prefabricated structures) with different expansion coefficients.
145g/m²: Applied in walls mixed with various materials to prevent cracking and distribute surface pressure, especially in External Wall Insulation Systems (EIFS).
160g/m²: Used in mortar reinforcement layers to accommodate movement between layers caused by shrinkage and temperature changes, preventing cracks and ruptures.

Tag:

Item Number	Yarn (Tex)	Mesh (mm)	Density Count/25mm	Tensile Strength × 20cm	Woven Structure	Content of Resin %
45g2.5×2.5	33×2 \| 33	2.5 \| 2.5	10 \| 10	550 \| 300	Leno	18
60g2.5×2.5	40×2 \| 40	2.5 \| 2.5	10 \| 10	550 \| 650	Leno	18
70g 5×5	45×2 \| 200	5 \| 5	5 \| 5	550 \| 850	Leno	18
80g 5×5	67×2 \| 200	5 \| 5	5 \| 5	700 \| 850	Leno	18
90g 5×5	67×2 \| 250	5 \| 5	5 \| 5	700 \| 1050	Leno	18
110g 5×5	100×2 \| 250	5 \| 5	5 \| 5	800 \| 1050	Leno	18
125g 5×5	134×2 \| 250	5 \| 5	5 \| 5	1200 \| 1300	Leno	18
135g 5×5	134×2 \| 300	5 \| 5	5 \| 5	1300 \| 1400	Leno	18
145g 5×5	134×2 \| 360	5 \| 5	5 \| 5	1200 \| 1300	Leno	18
150g 4×5	134×2 \| 300	4 \| 5	6 \| 5	1300 \| 1300	Leno	18
160g 5×5	134×2 \| 400	5 \| 5	5 \| 5	1450 \| 1600	Leno	18
160g 4×4	134×2 \| 300	4 \| 4	6 \| 6	1550 \| 1650	Leno	18
165g 4×5	134×2 \| 350	4 \| 5	6 \| 5	1300 \| 1300	Leno	18
