PVC Coated Chain Link Fence Hot Dip Galvanized Diamond Mesh

10 roll
MOQ
Determined by size and quantity
Price
PVC Coated Chain Link Fence Hot Dip Galvanized Diamond Mesh
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Chain Link Fence
Key Words: Pvc Coated Chain Link Fence
Material: Low-Carbon Iron Wire
Application: Fence Mesh,Sport Field
Frame Material: Metal
Surface Treatment: PVC Coated,Hot Dipped Galvanized,Electro Galvanized
Hole Shape: Diamond
Width: 2m Or As Your Requirement
Highlight:

Metal Wire Net Chain Link Fence

,

Cyclone Chain Link Fence

,

Small Hole Chain Link Fence
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Chain link fence
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000 roll/ day
Product Description

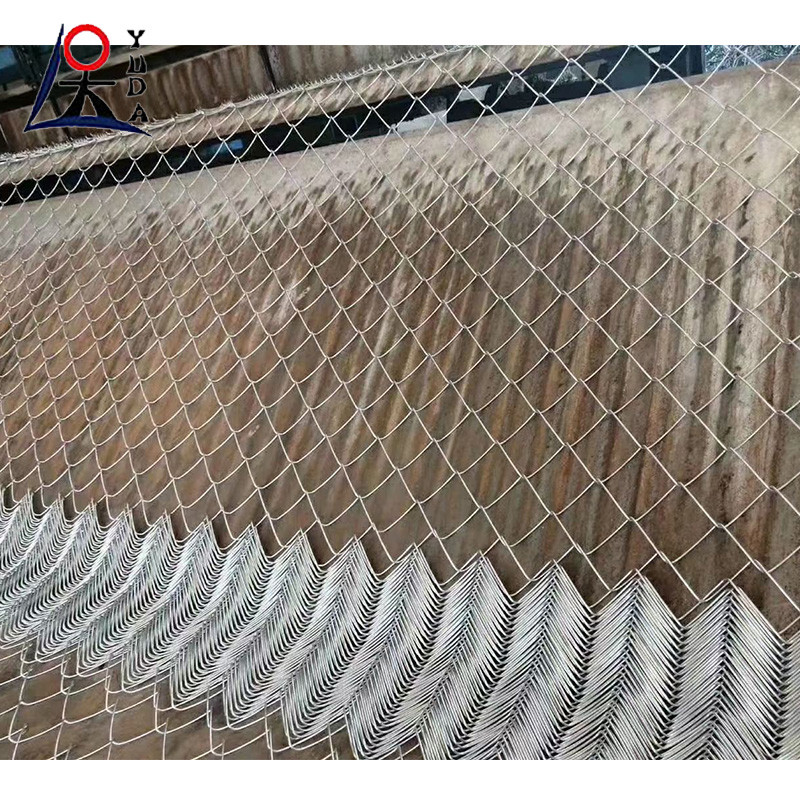

Hot Dip Galvanized Cyclone Metal Wire Net Small Hole Chain Link Fence Sheet
Product Overview

Chain link fence is made of high quality hot-dip galvanized (or PVC coated) low carbon steel wire, woven by advanced automatic equipment. It features excellent rust resistance, primarily used as safety fencing for residential, commercial, and agricultural applications.

Key Features
  • Versatile applications due to strength, corrosion resistance, and flexibility
  • Cost-effective alternative to wood or vinyl fencing
  • Maintains visibility while providing security
  • Available with optional barbed wire or razor wire for enhanced security
  • Anti-climb and anti-cut features available

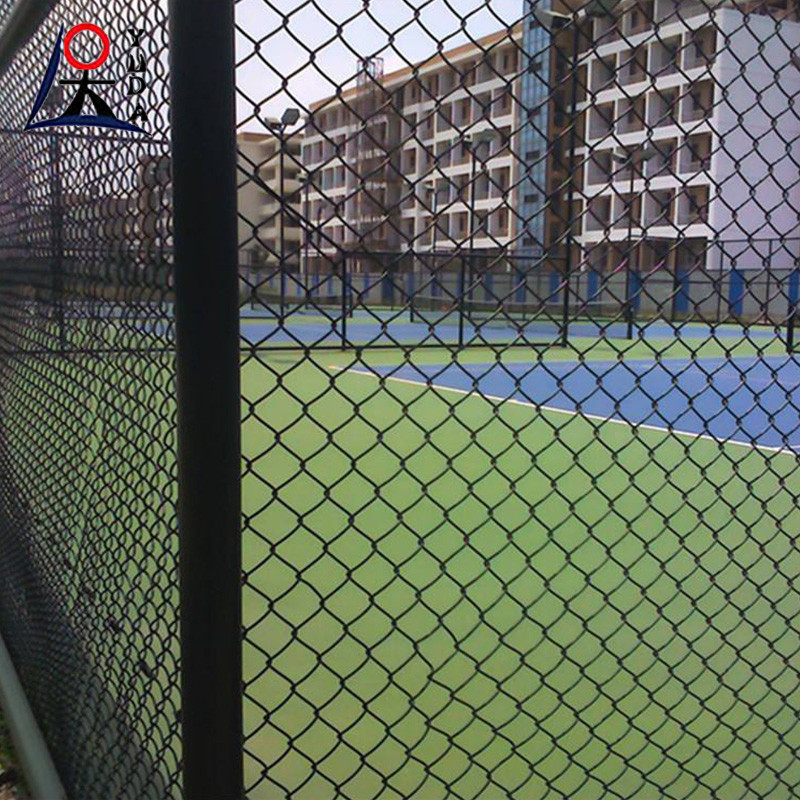

  • Suitable for various applications including sports fields, playgrounds, and construction sites
Technical Specifications
Attribute Value
Material Low-Carbon Iron Wire
Application Fence Mesh, Sport Field
Frame Material Metal
Surface Treatment PVC coated, Hot Dipped Galvanized, Electro galvanized
Hole Shape Diamond
Width 2m or custom
Standard Dimensions
Mesh Wire Diameter Width Length
40mm×40mm 2.8mm-3.8mm 0.5m-4.0m 5m-25m
50mm×50mm 3.0mm-5.0mm 0.5m-4.0m 5m-25m
60mm×60mm 3.0mm-5.0mm 0.5m-4.0m 5m-25m
80mm×80mm 3.0mm-5.0mm 0.5m-4.0m 5m-25m
100mm×100mm 3.0mm-5.0mm 0.5m-4.0m 5m-25m
Surface Treatment Specifications
Treatment Type Minimum Maximum
Electro Galvanized 15g/m² 25g/m²
Hot Dip Galvanized 30g/m² 366g/m²
PVC/PE Coated 400 microns 1000 microns
Customization Options
  • Colors: Dark Green, White, or custom colors
  • Materials: Low carbon steel wire, Stainless steel wire, Aluminum alloy wire
  • Wire Diameter: 1.2mm - 5.0mm
  • Mesh Size: 25mm - 100mm
  • Roll Length: 0.5m - 100m (or more)
  • Roll Width: 0.5m - 5.0m
Frequently Asked Questions
What makes your fence products different from other companies?
We provide free design service, customization options, and warranty service, with strict quality control and competitive pricing.
Can I get a sample of your products?
Yes, free samples are available upon request.
Will my fence rust, peel, fade or chip?
With proper care and without manmade damage, the surface can last for more than 10 years.
What are fittings and how are they used?
We offer hundreds of fittings for our fence products, with different accessories available for each fence type.
