Name: PVC Coated Woven Hexagonal Mesh Galvanized Gabion Box Gabion Retaining Wall
Brand: Anping Yuda Wire Mesh Co., Ltd.
SKU: Gabion mesh
Price: 2.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Wire Mesh Baskets Retaining Walls

Key Words: Stainless Steel Gabion Baskets

Application: Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh

Type: Welded Mesh,Hexagonal Wire Mesh

Surface Treatment: Stainless Steel

Wire Gauge: 2.0mm-4.0mm

Usage: Flood Control Retaining Wall

Place Of Origin: Anping,China

Highlight:

Galvanized Gabion Box

Hexagonal Mesh Gabion Box

PVC Coated Gabion Box

Basic Infomation

Place of Origin: CHINA

Brand Name: YUDA

Model Number: Gabion mesh

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Customized according to buyer's requirements

Delivery Time: 3-10 day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200000 Square Meter/ day

Gallery

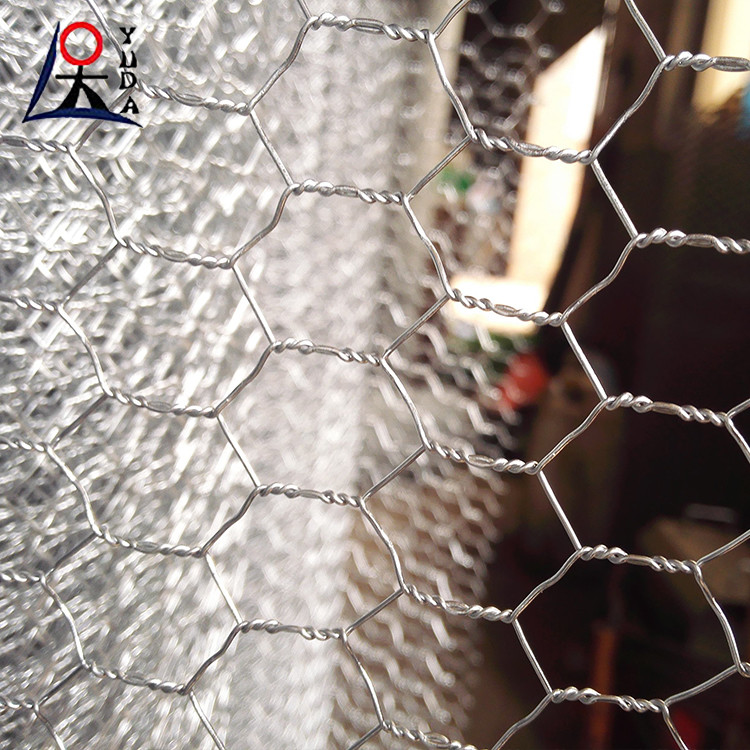

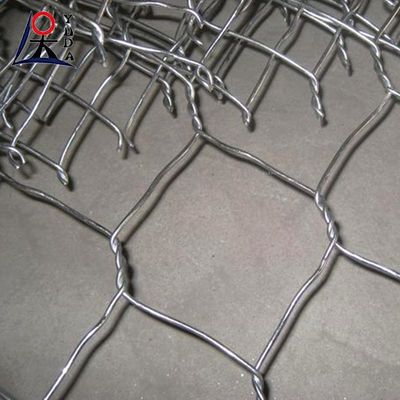

PVC Coated Woven Hexagonal Mesh Galvanized Gabion Box Gabion Retaining Wall

Product Description

PVC Coated Woven Hexagonal Mesh Galvanized Gabion Box Gabion Retaining Wall

Gabion basket by high corrosion resistance, high strength, ductility of low carbon steel wire or coated PVC steel wire using mechanical weaving, the use of the net made of the box structure is gabion basket.

Material introduction:

(1)Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surface of the steel wire is protected by hot dip galvanizing, the thickness of the galvanized protective layer is made according to customer requirements, and the maximum amount of galvanizing can reach 300g/m2.

(2) Zinc-5% aluminum (10% aluminum)-mixed rare earth alloy steel wire: ( also called Golfan) steel wire, which is an international emerging a new material, corrosion resistance is more than 3 times that of traditional pure galvanized, the diameter of the steel wire can reach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa.

(3) Galvanized steel wire coated: high-quality low carbon steel wire, a layer of PVC protective layer on the surface of the steel wire, and then woven into various specifications of hexagonal nets. This layer of PVC protective layer will greatly increase the protection in the highly polluted environment, and through the choice of different colors, it can be integrated with the surrounding environment.

Hole (mm)	Mesh wire(mm)	Side wire(mm)	Binding wire(mm)	Max width
60X80	2.0~2.8	3.0~4.0	2.0~2.2	4M
80X100	2.0~3.0	3.0~4.0	2.0~2.2	4M
80X120	2.0~3.0	3.0~4.0	2.0~2.2	4M
100X120	2.0~3.0	3.0~4.0	2.0~2.2	4M
100X150	2.0~3.0	3.0~4.0	2.0~2.2	4M
120X150	2.0~3.0	3.0~4.0	2.0~2.2	4M

PVC Coated Woven Hexagonal Mesh Galvanized Gabion Box Gabion Retaining Wall 0
