Galvanized Woven Hexagonal Wire Box Gabion Mesh Rock Cage Retaining Wall
Gabion, gabion basket, gabion box, gabion cage, stone basket, stone cage, gabion mattress, reno mattress, galvanized gabion, rockfall netting, gabion wire mesh, gabion mesh, gabion wire, gabbione, gaviones, cajade gaviones, gabião, zinc coated gabion

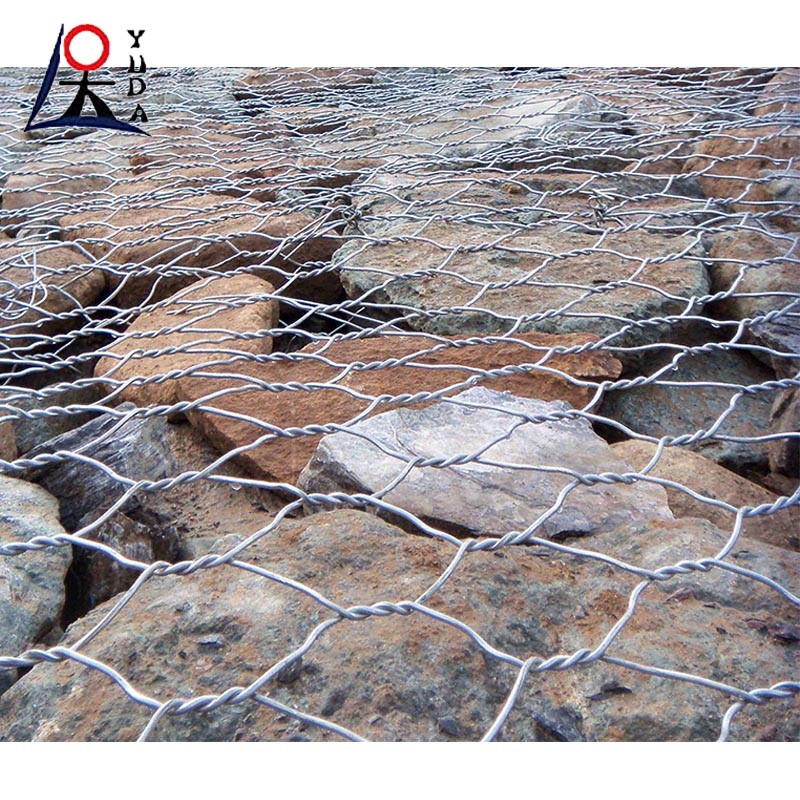

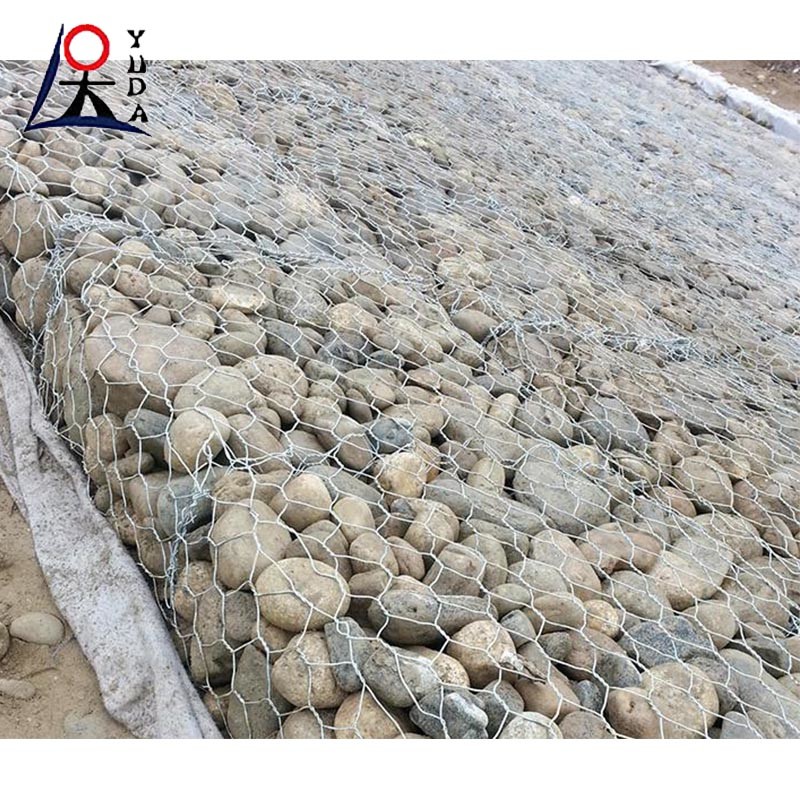

Gabions baskets are rectangular baskets made of heavily galvanized, double twisted, steel woven wire mesh. The single unit constructed baskets are assembled, laced together and then filled with stone to form a monolithic structure. Gabions and Reno mattresses are used for retaining walls, sound barriers, channel linings, slope stabilization, dams and weirs. They are particularly effective in restoring the environment and promoting vegetation growth.
According to its weave method, it includes hexagonal gabion mesh and welded gabion mesh.
Gabion mesh could be electro galvanized gabion mesh,hot dipped galvanized gabion mesh,
zinc- aluminum -mischmetal (Zn-Al-MM) alloy gabion mesh (Galfan gabion mesh),
polyester powder(PVC) coated gabion mesh and polyester powder(PVC) coated
after galvanized gabion mesh etc.
Material: high quality low carbon steel wire( hot-dip galvanized wire, electro galvanized wire or PVC coated wire.)
Application: This kind of products is widely used to prevent soil erosion and retain soil particles, reduce water velocities and recapture river bed sediment in streams; also used mostly in the civil engineering industry especially in the construction of roads; recently due to their environmental benefits, they are used in various Application and industries.
Hexagon Retaining Wall Wire Netting Woven Gabion Box / Gabion Basket
1. In bundles with plastic film
2. Pallet
3. Customized Packages
1).Affording Large scale distortion, but never be defeated
2). Easily construct, no special technology needed.
3). Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
4). Economical . Just put the stone into the gabion and seal.
5)Saving the transport costs. Which can fold while loading and transport, then assemble.
6) The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
7).Excellent Penetrability, which can prevent from the whist by liquid.
| Hole (mm) |
Mesh wire(mm) |
Side wire(mm) |
Binding wire(mm) |
Max width |
| 60X80 |
2.0~2.8 |
3.0~4.0 |
2.0~2.2 |
4M |
| 80X100 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 80X120 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 100X120 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 100X150 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
| 120X150 |
2.0~3.0 |
3.0~4.0 |
2.0~2.2 |
4M |
