Home /Products/Field Fence/Grassland Weave Iron Wire Mesh Field Fence For Cattle Metal Net

Grassland Weave Iron Wire Mesh Field Fence For Cattle Metal Net

10 roll
MOQ
Decided based on requirements
Price
Grassland Weave Iron Wire Mesh Field Fence For Cattle Metal Net
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Field Fence
Key Words: Weave
Material: Low-Carbon Iron Wire
Application: Fence Mesh,grassland,sheep
Height: 0.8-2.0m Or As Your Demand
Length: 50m 100m Or As Your Request
Usage: Protecting Wire Mesh Fence
Diameter: CUSTOMIZED
Highlight:

Weave Iron field fence for cattle

,

Weave Iron wire mesh field fence

,

Metal Net Field Fence
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Field fence
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 roll/ day
Product Description

Grassland Weave Iron Wire Mesh Cattle Farm Field Fence Metal Net



Field fence is also known as Prairie fence, Cattle fence, Grassland Fence, Horse Fence, Sheep

Fence, Deer Fence, Woven Wire, Livestock Fence, Hinge Joint Field Fence which is made of

hot-dipped galvanized steel wire, offer high strength and tensile strength, provide safety

fencing against fierce striking of cattle, horse or goats. Knotted Wire Mesh Fences make an

ideal fencing material for grasslands husbandry.

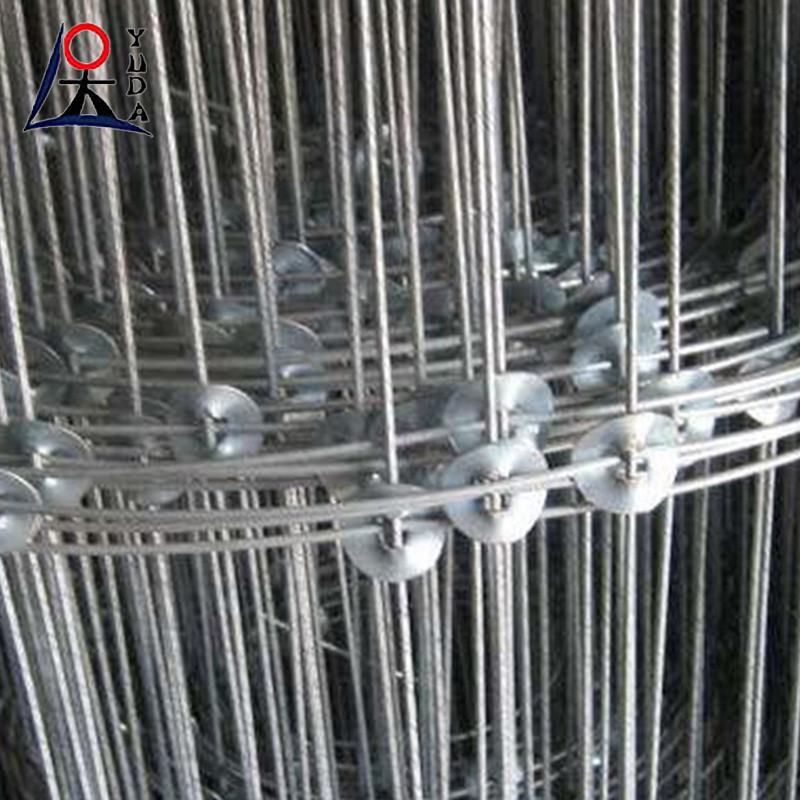

Hinge joint field fence has four wrap knots or joints formed with two vertical stay wires wrapped together that give under pressure, then spring back into shape. This hinged knot provides continuing protection, maximum strength, and flexibility of the entire fence fabric. Hinge joint fence is popularly used in farms, and pastures of the USA, Canada, South Africa, and Australia as field fencing materials. A hinge joint fence is also called a Hinge Knot Fence or Hinge Lock Fence.



No.
Type
Specification
Weight(kg)
Top and Bottom Wire Dia.(mm)
Body Wire(mm)
1
7/150/813/50
102+114+127+140+152+178
19.3
2.5
2.0
2
8/150/813/50
89(75)+89+102++114+127+140+152
20.8
2.5
2.0
3
8/150/902/50
89+102+114+127+140+152+178
21.6
2.5
2.0
4
8/150/1016/50
102+114+127+140+152+178+203
22.6
2.5
2.0
5
8/150/1143/50
114+127+140+152+178+203+229
23.6
2.5
2.0
6
9/150/991/50
89(75)+89+102++114+127+140+152+178
23.9
2.5
2.0
7
9/150/1245/50
102+114+127+140+152+178+203+229
26.0
2.5
2.0
8
10/150/1194/50
89(75)+89+102++114+127+140+152+178+203
27.3
2.5
2.0
9
10/150/1334/50
89+102+114+127+140+152+178+203+229
28.4
2.5
2.0
10
11/150/1422/50
89(75)+89+102+114+127+140+152+178+203+229
30.8
2.5
2.0
Note:The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(m).



Grassland Weave Iron Wire Mesh Field Fence For Cattle Metal Net 0

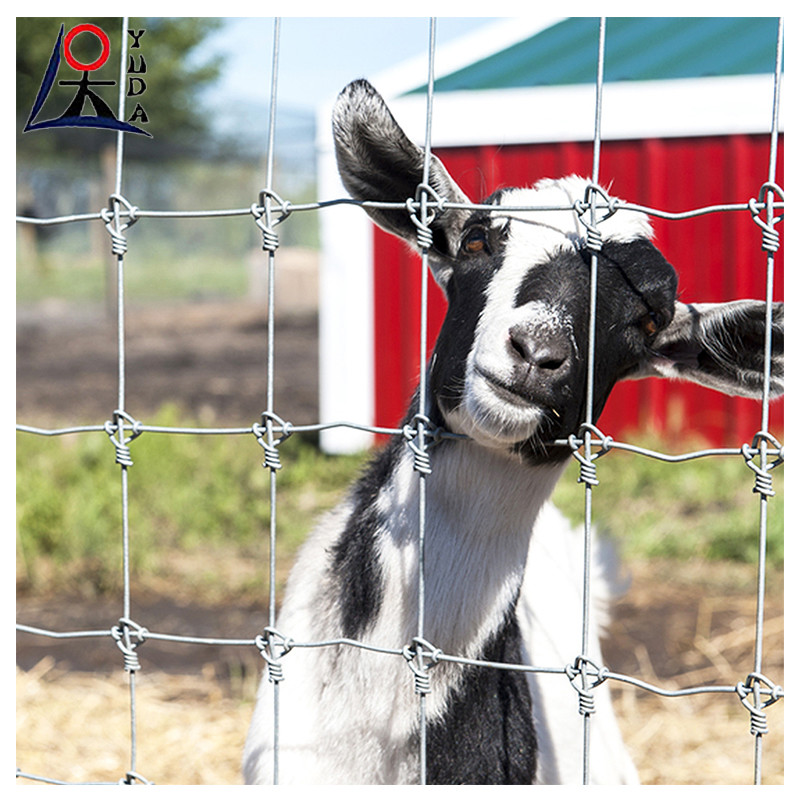

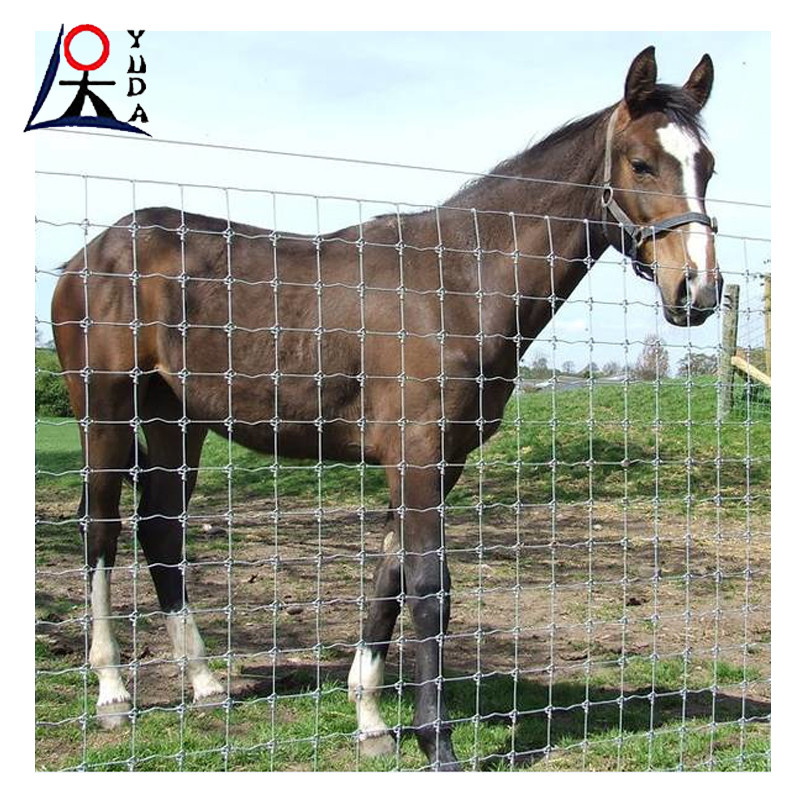

Field fence is a kind of mesh used in cattle, goat, deer, and pig. It is used for grassland,
pastures,protection of ecological projects, protecting grassland, forestry, highway, etc.

Grassland Weave Iron Wire Mesh Field Fence For Cattle Metal Net 1
