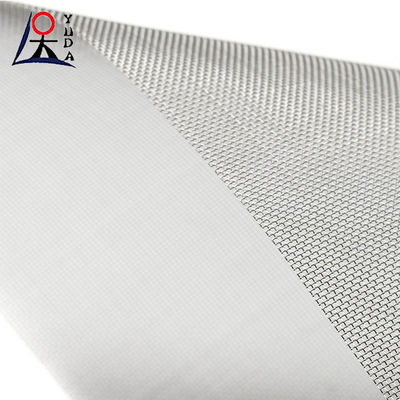

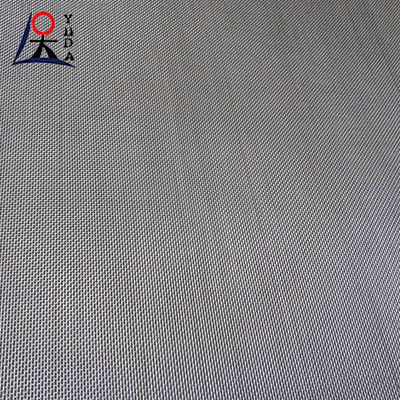

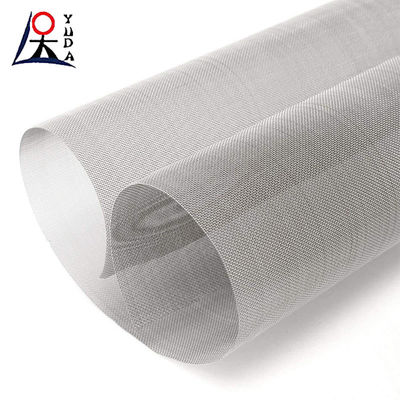

Stainless Steel Weave Metal Mesh Filter Disc 50 Micron Ultra Fine Steel Wire Mesh Roll
Stainless steel wire mesh has a variety of materials, including SUS302, 201, 304, 304L, 316,
316L, 310, 310S, etc. Its production process includes the same diameter of radial and
latitudinal steel wires, with each wire intersecting every two (or more) up and down, and every
two (or more) up and down at each latitude. There are various weaving methods such as plain
weave, twill weave, stone weave, etc.
Stainless steel wire mesh is widely used for screening and filtration under acidic and alkaline
environmental conditions, such as in the petroleum industry as mud mesh, chemical and
chemical fiber industry as screen mesh, electroplating industry as acid washing mesh, etc.
In addition, it is widely used medicine, gas, liquid filtration, and other media separation.
Widely used: Used for screening and filtration under acidic and alkaline environmental conditions,
used as mud screens in the petroleum industry, screening screens in the chemical fiber industry,
and acid washing screens in the electroplating industry. In addition, it is widely used in industries
such as petroleum, chemical, food, medicine, and machinery manufacturing.
Sturdy structure: Made with precision automated mechanical technology, it will not loosen
even when cut or subjected to pressure locally.
|
|
Stainless Steel Woven Wire Mesh, Wire Cloth
|
|
|
304, 304L, 316, 316L, 310s, 904L, 430, etc
|
|
|
Inconel, Monel, Nickel, Titanium, etc
|
|
|
0.02 - 6.30mm
|
|
|
1 - 3500mesh
|
|
|
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
|
|
|
Standard less than 2000 mm
|
|
|
30m rolls or cut to length, minimum 2m
|
|
|
Rolls and sheets are available
|
|
|
ASTM E2016 - 20
|
FAQ
Q: I have a sample of the mesh I need but I don't know how to describe it, can you help me?
A: Yes, please send us the sample and we will contact you with the results of our examination.
Q: Can I deform and further process the mesh?
A: Yes, any kind of deforming and processing is possible.
Q:Do you provide sample?is it free or extra ?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock or it is 10-20 days if the goods are not in
stock ,it is according to quanlity .
Q:What's your terms of payment?
A:30%T/T in advance ,balance paid before shippment.
