Name: Netting Copper Woven Wire Mesh Tape Bronze Wire Net Good Conductivity
Brand: Anping Yuda Wire Mesh Co., Ltd.
SKU: Brass / copper wire mesh
Price: 3.80 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Copper Netting Mesh

Key Words: Copper Netting Mesh

Material: Copper Wire,Brass Wire,phoshpor Bronze Wire

Technique: Woven

Performance: Wear Resistance,good Conductivity

Hole Shape: Square Hole

Sample: Sample Avaliable

Usage: Faraday Cage Screen Emf Shielding

Highlight:

woven copper wire mesh

good conductivity copper wire mesh

good conductivity copper woven wire mesh

Basic Infomation

Place of Origin: CHINA

Brand Name: YUDA

Model Number: Brass / copper wire mesh

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Customized according to buyer's requirements

Delivery Time: 3-10 day

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 200000 Square Meter/ day

Gallery

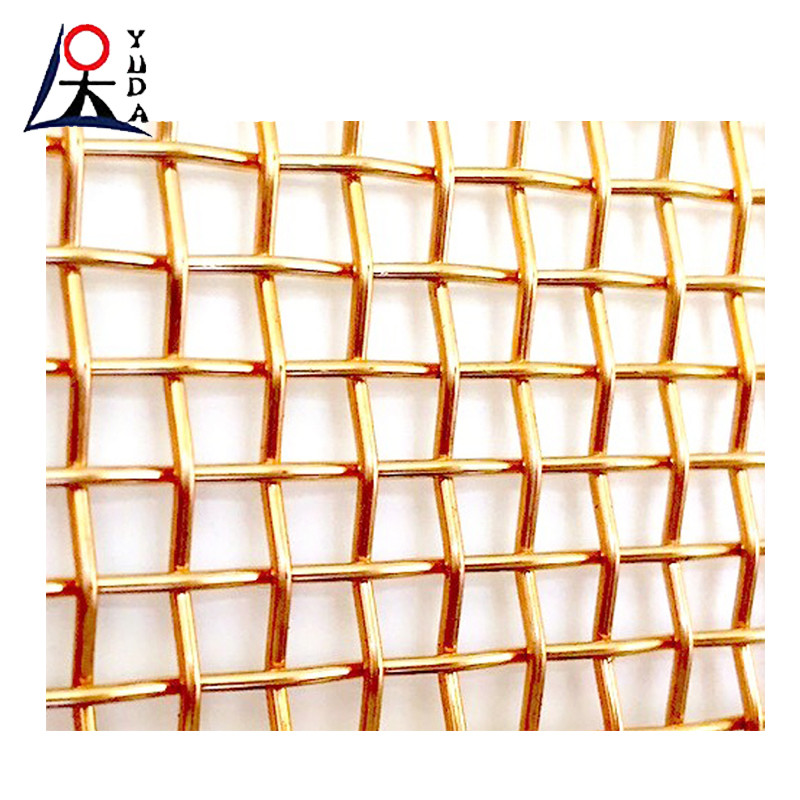

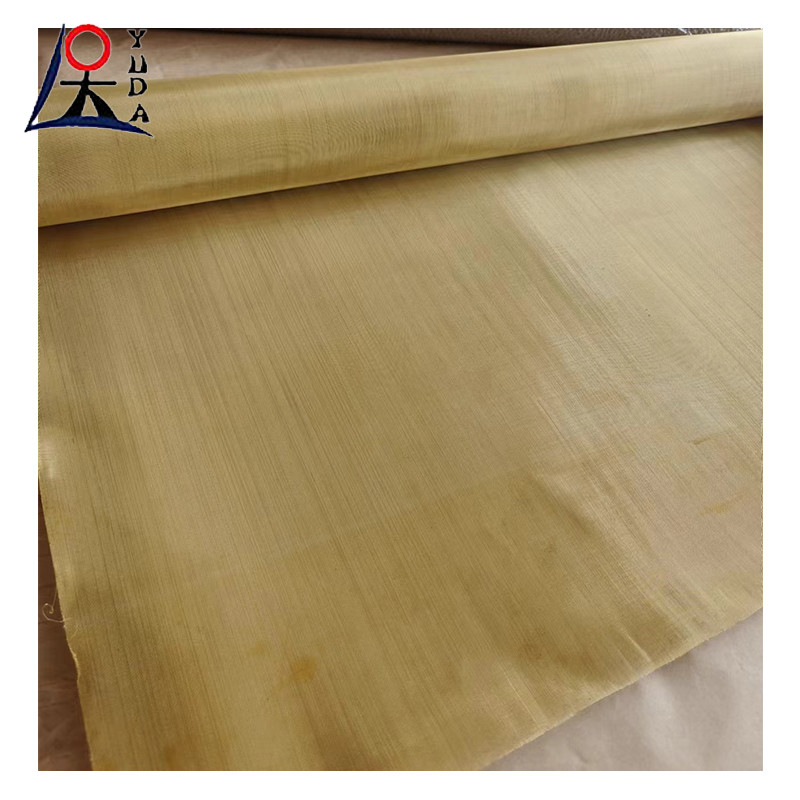

Netting Copper Woven Wire Mesh Tape Bronze Wire Net Good Conductivity

Product Description

Copper Woven Wire Mesh Tape - High Conductivity Bronze Wire Net

Product Specifications

Attribute	Value
Product Name	Copper Netting Mesh
Material	Copper Wire, Brass Wire, Phosphor Bronze Wire
Technique	Woven
Performance	Wear resistance, Excellent conductivity
Hole Shape	Square hole
Sample Availability	Samples Available
Primary Applications	Faraday Cage Screen, EMF Shielding

Product Description

Our Copper Woven Wire Mesh offers exceptional corrosion resistance due to its copper-zinc alloy composition. It maintains structural integrity in harsh environments including humid, acidic, or alkaline conditions, ensuring long-term durability.

The mesh demonstrates excellent wear resistance, making it ideal for applications involving frequent friction such as liquid and gas filtration systems.

Material Composition

Brass Wire: Cu 65%, Zn 35%
Red Copper Wire: Cu 99.8%
Phosphor Bronze Wire: Cu 85%-90%, Sn 5%-15%

Available Specifications

Mesh Count: 1-200 mesh
Wire Diameter: 0.05mm-2.03mm
Standard Roll Size: 1×30m
Custom Sizes Available: 1.2×30m, 1.5×30m, 2m×30m

Key Advantages

High Strength: Resists stretching, bending, and compression for demanding applications
Superior Corrosion Resistance: Ideal for marine, chemical, and food processing environments
Excellent Electrical Conductivity: Perfect for EMI shielding and electronic applications
Weather Resistance: Maintains performance in outdoor and humid conditions
High Temperature Tolerance: Suitable for heat exchangers and industrial equipment

Mesh Specifications

Mesh/inch	Wire Diameter (mm)	Aperture (mm)	Mesh/inch	Wire Diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	40mesh	0.21	0.425
3mesh	1.60	6.866	50mesh	0.19	0.318
4mesh	1.20	5.15	60mesh	0.15	0.273
5mesh	0.91	4.17	70mesh	0.14	0.223
6mesh	0.80	3.433	80mesh	0.12	0.198
8mesh	0.60	2.575	90mesh	0.11	0.172
10mesh	0.55	1.99	100mesh	0.10	0.154
12mesh	0.50	1.616	120mesh	0.08	0.132
14mesh	0.45	1.326	140mesh	0.07	0.111
16mesh	0.40	1.188	150mesh	0.065	0.104
