Sound Absorbing Barrier Panels Wall Construction Noise Reduction Fencing

50 Piece
MOQ
Determined by size and quantity
Price
Sound Absorbing Barrier Panels Wall Construction Noise Reduction Fencing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sound Barrier
Key Words: Outdoor Sound Barrier
Panel Style: Steel Panel, PC Board
Application: Highway,Railway,Noise Barrier,etc
Panel Thickness: At Your Requst
Panel Length: 2m~4m Can Custom
Feature: High Stability, Eco-friendly, Effective Railway Noise Barrier
Sheets Thickness: 0.8-1mm, Can Be Customized
Highlight:

Road Noise Reduction Fencing

,

Construction Road Noise Barrier

,

Road Sound Absorbing Barrier

Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Sound barrier
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Meters/ day
Product Description

Road Noise Barrier Sound Absorbing Barrier Panels Wall Construction Noise Reduction Fencing



Sound barrier, between the source and receiver inserts a facilities, make the sound waves

spread has a significant additional damping, so as to abate the noise in the receiver in a certain

area, such facilities are called noise barrier. It can be divided into traffic noise barriers, the

equipment noise attenuation of noise barriers, industrial factory boundary noise barriers.



Road noise barrier (also called a soundwall, sound berm, sound barrier, or acoustical barrier)

is an Sound insulation and noise reductionexterior structure designed to protect inhabitants

of sensitive land use areas from noise pollution.



The noise barrier Screen body is mainly composed of shutter metal galvanized sheet,

fiberglass mesh, and stone wool



The application range of sound barriers is very wide, and they can be designed and manufactured

according to different needs and site conditions. Whether it is roads, railways, residential areas,

or other areas that require noise reduction, sound barriers can be used to solve the problem.



Parts list
Items
Product description
Noise barrier panel
Metal material
Galvanized sheet aluminum alloy sheet, color plate
Transparent material
Glass, PC board, acrylic board, etc.
Other material
High strength cement, cement wood chips, glass steel, etc.
Hole pattern
Louver holes; common hole spacing 20*137, 20*182
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances
Aperture ratio
Not less than 25%
Common size
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
surface concave groove
Can be customized according to drawings or customer requirements
Surface treatment
Electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
H shape post
Material
Q235B
Common size
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
Common height
2m-6m up to12m
Flange
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
Surface treatment
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
Noise absorb material
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.

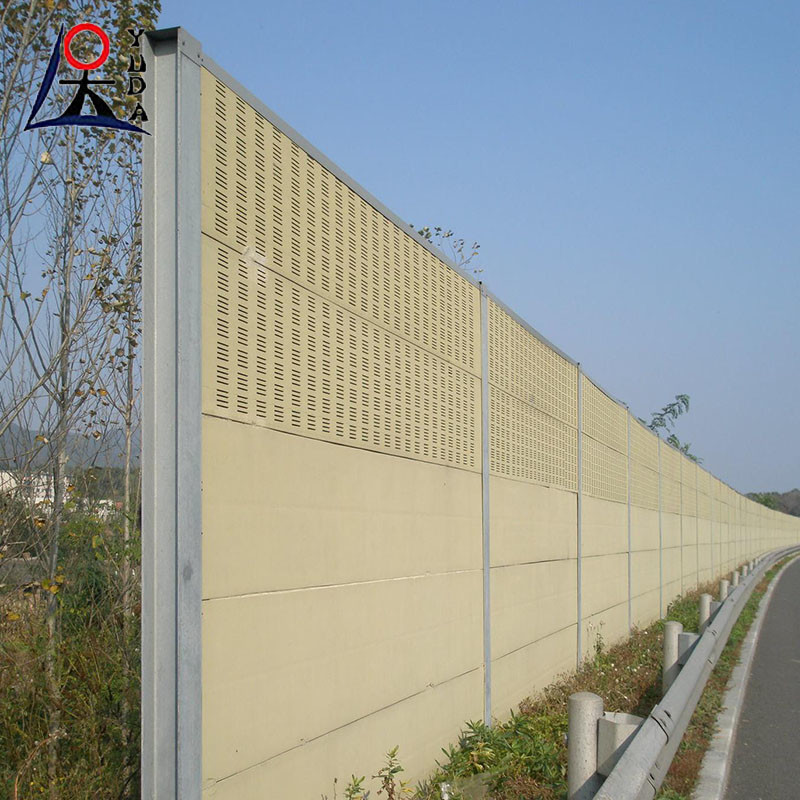

Sound Absorbing Barrier Panels Wall Construction Noise Reduction Fencing 0

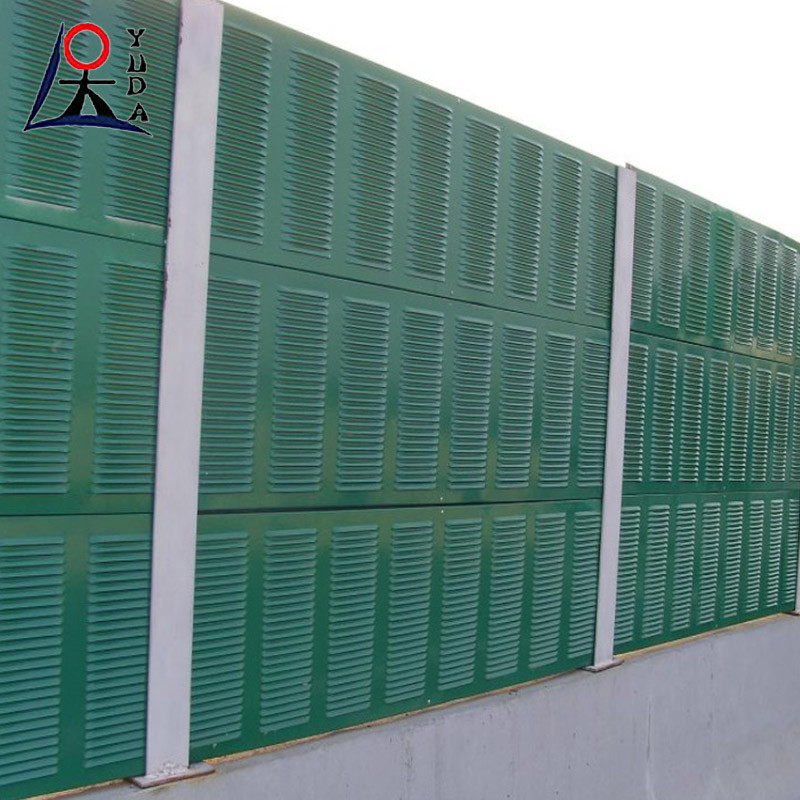

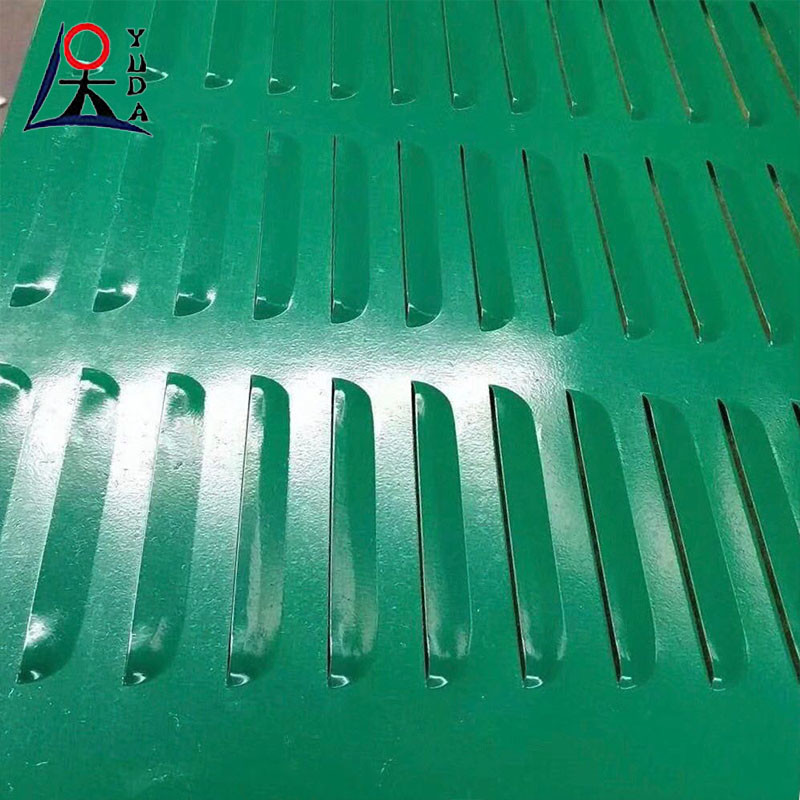

Sound Absorbing Barrier Panels Wall Construction Noise Reduction Fencing 1Sound Absorbing Barrier Panels Wall Construction Noise Reduction Fencing 2
