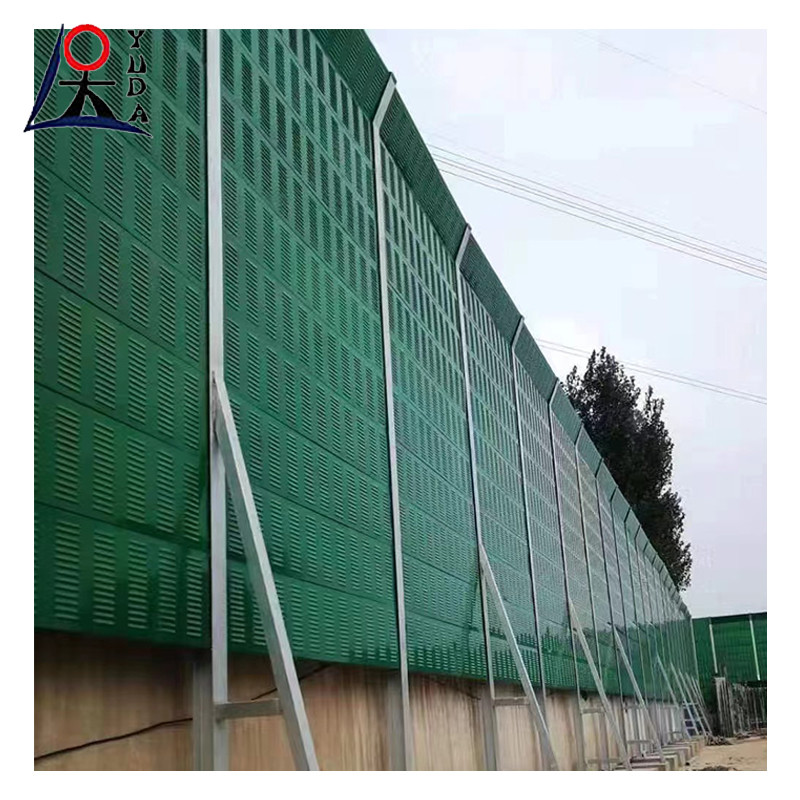

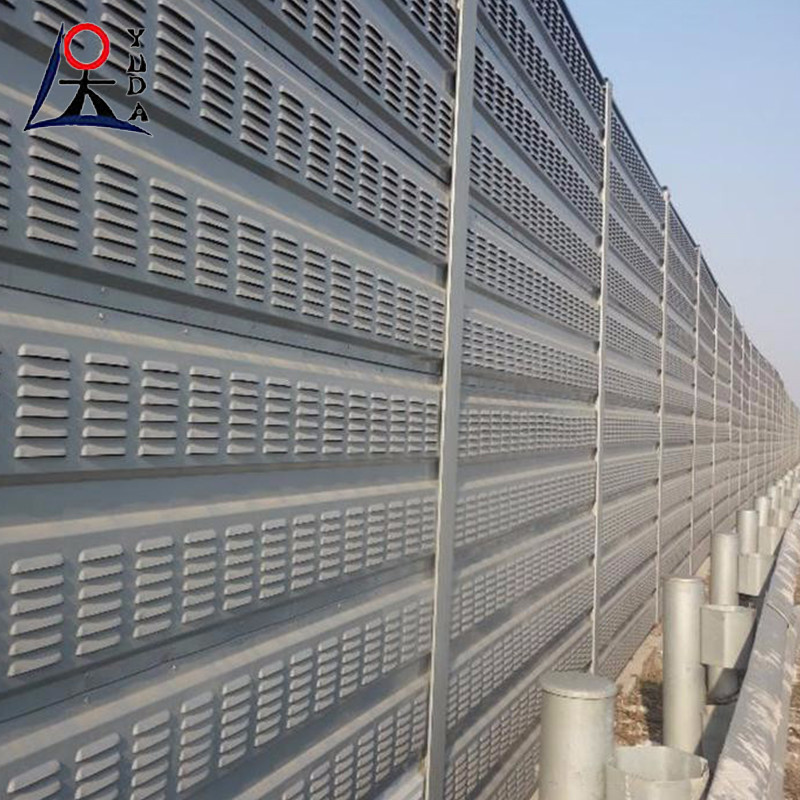

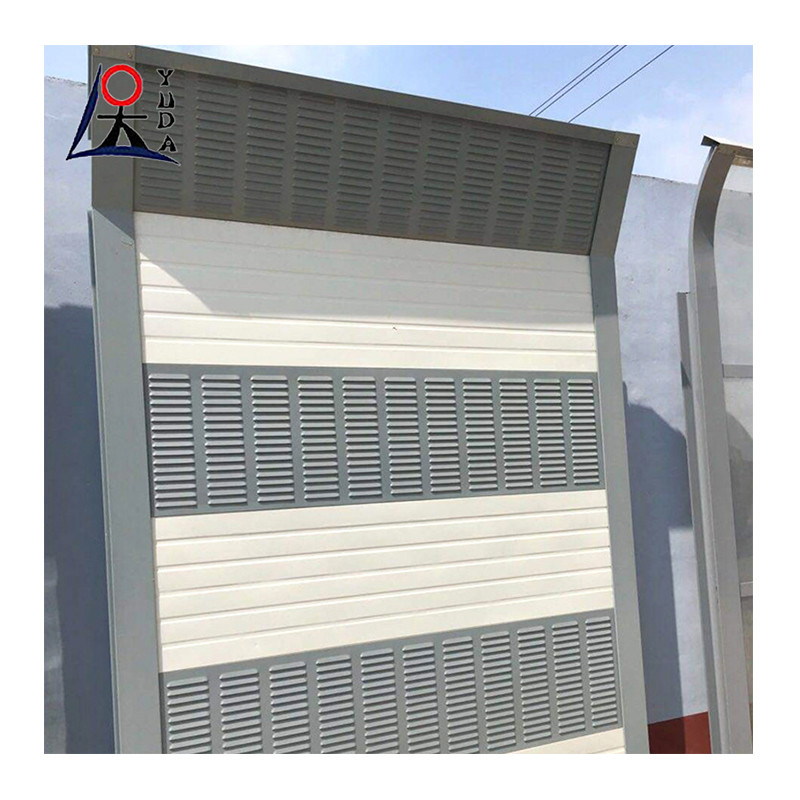

Highway Road Noise Barrier / Outdoor Reduction Sound Barrier
Sound Barrier Fence is mainly used in the construction site, help to prevent noise propagation
to the neighborhood and reduce the work area noise.
Based on strict acoustic principle, noise barrier is of high quality and stability and the
performance will not degrade because of the changes in the rain or the sun.
It’s perfect for your construction site noise control.
The design takes full consideration of waterproof and dust-proof, and is set in the dust or
rain environment, and its sound absorption is not affected. Dust removal and water removal
measures have been set in the structure to avoid water accumulation inside the component.
The highway sound barrier adopts professional sound insulation materials and structural design,
which can effectively isolate the noise generated by vehicles during driving and significantly
reduce noise pollution. This can not only improve the sound environment around the road, but
also protect the surrounding residents from noise interference and improve their quality of life.
| METAL SHEET |
| PANEL HEIGHT |
PANEL LEHGTH |
SHEET THICKNESS |
SHEET THICKNESS |
PANEL TYPE |
|
0.5m
1.0m
|
2.0m
2.5m
3.0m
4.0m
|
80mm
100mm
120mm
|
1.0-1.5mm |
shutter or perforated |
| PC/PMMA SHEET |
|
PANEL
HEIGHT
|
HEIGHT |
SHEET THINCKNESS |
LIGHT TRANSMITTANCE |
|
0.5m
1.0m
1.5m
|
2.0m
2.5m
3.0m
4.0m
|
8mm
10mm
12mm
15mm
|
≥80% |
| NOISE BARRIER |
| TOTAL HEIGHT |
LENGTH |
RW |
NRC |
| 3.0m as standard |
2.0m
2.5m
3.0m
4.0m
|
≥35dB |
≥0.84 |
Advantages Sound Noise Barrier System:
Highly absorptive noise barrier system
Easy installation or maintenance replacement
Can be incorporated with other materials
Can be easily relocated
Minimum repair required only damaged panels to be replaced
Fits standard support post systems
Standard/custom modular sizes
Pre-printed graphics
Using security cables on bridges and slopes are at lower risk
Fire resistant
Maintenance free
Low life cycle costs
Factory applied Anti-graffiti coating
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: What certificate do you have?
A: We have ISO and CE certificate.
Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
Q: How long is the warranty period?
A: All of our products have one year warranty.
Q: What’s the main market of your company?
A: We have customers all over the world.
