Home /Products/Steel Gratings/Heavy Duty Press-Locked Steel Grating PLG Metal Grates

Heavy Duty Press-Locked Steel Grating PLG Metal Grates

50 Square Meter
MOQ
US $9.00 - 20.00/ Square Meter
Price
Heavy Duty Press-Locked Steel Grating PLG Metal Grates
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Steel Grating
Key Words: Common Integral Louver Heavy Duty Press-Locked Steel Grating PLG Metal Grates
Materials: Low Carbon Steel,Stainless Steel,aluminum Alloy,FRP Etc
Processing Technology: Pressure Welding,pressure Locked
Bearing Bar Type: Flat Bar, I Bar, Serrated Bar
Width: 0.3-1.5m
Grating Size: 1m X 5.8m
Height: 25-40mm
Highlight:

Integral Louver Press Locked Steel Grating

,

Common Press Locked Steel Grating

,

PLG press locked bar grating
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Steel gratings
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100000 Meters/ day
Product Description
Common Integral Louver Heavy Duty Press Locked Steel Grating PLG Metal Grates
Product Specifications
Attribute Value
Product Name Steel Grating
Materials Low carbon steel, Stainless steel, Aluminum alloy, FRP etc
Processing Technology Pressure welding, Pressure Locked
Bearing Bar Type Flat bar, I bar, Serrated bar
Width 0.3-1.5m
Grating Size 1m x 5.8m
Height 25-40mm
Product Description
Common Specification of Steel Grating: ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc. Special Material, High Zinc Coating and New Style can be Customized.
Technical Specifications
Category Description
Bearing Bar Size Flat steel: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm, etc.
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc.
US Standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 11/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'', etc.
Bearing Bar Pitch General specifications: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm, etc.
US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2, etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'', etc.
Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc.
Surface Treatment Black, self-colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated / teeth, I bar, serrated I bar
Standards China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Germany: DIN24537-1-2006
Japan: JIS

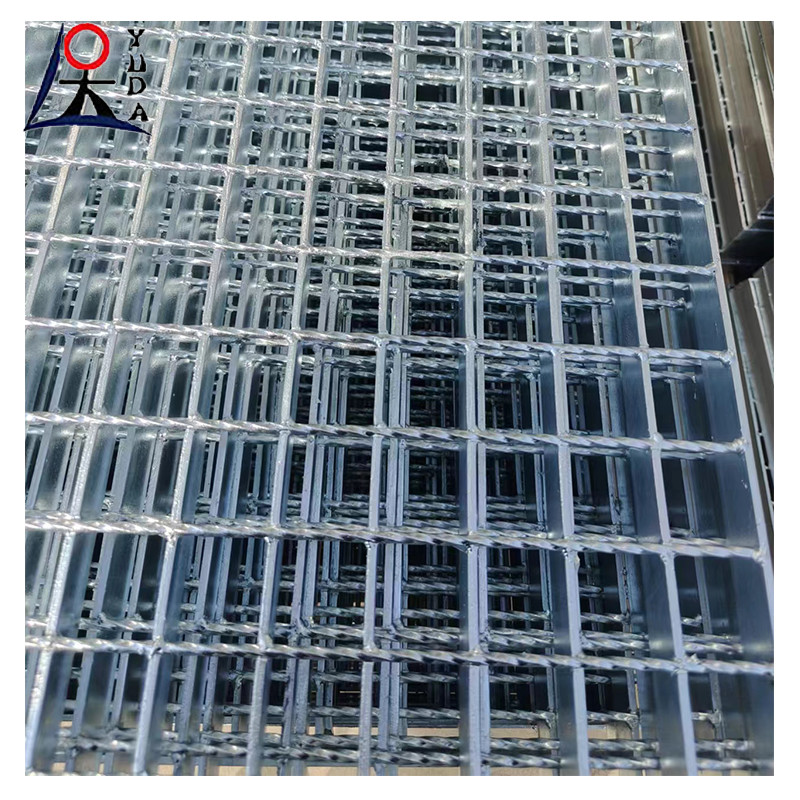

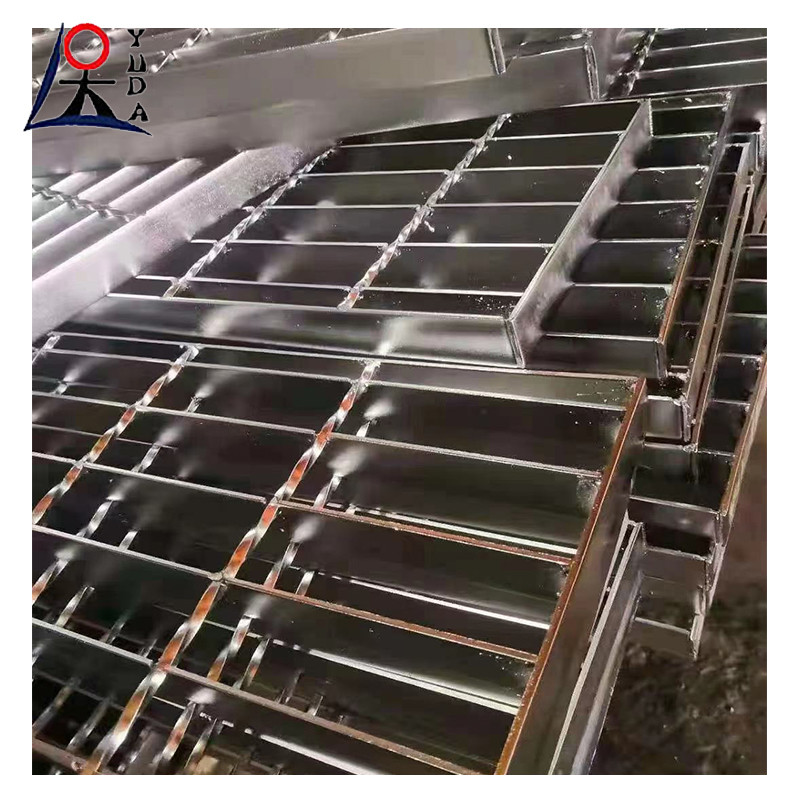

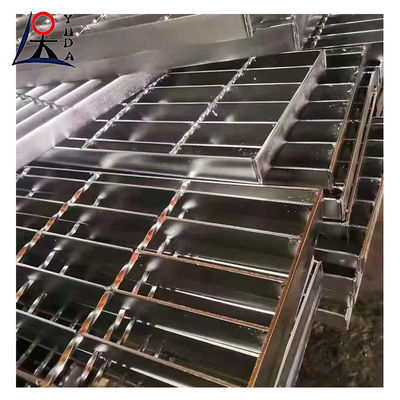

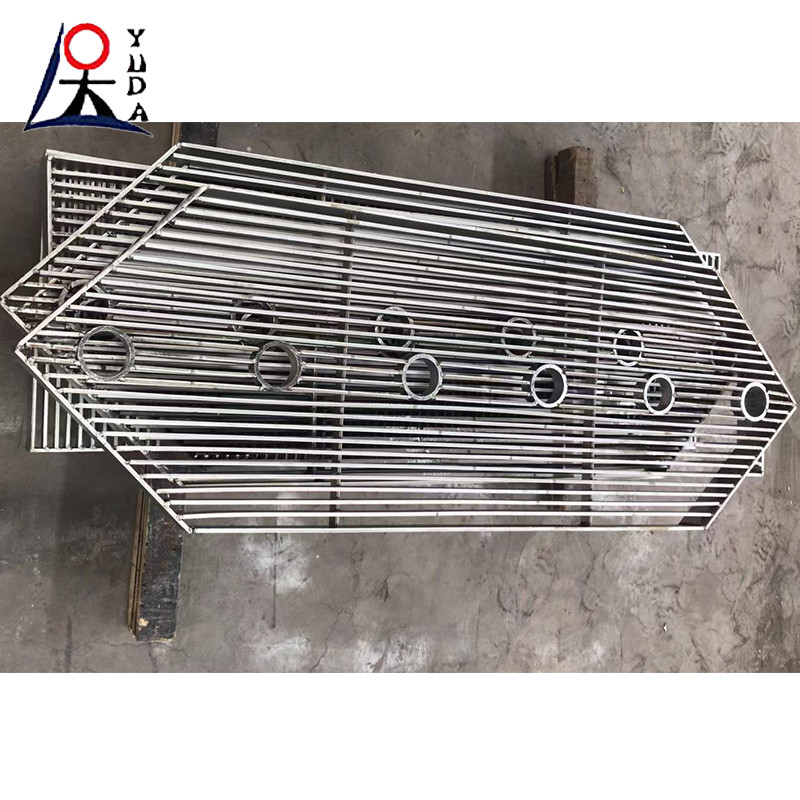

Heavy Duty Press-Locked Steel Grating PLG Metal Grates 0 Heavy Duty Press-Locked Steel Grating PLG Metal Grates 1 Heavy Duty Press-Locked Steel Grating PLG Metal Grates 2
Applications and Benefits
Anti-slip and drainage: The open hole design helps drain water and prevent slip accidents, ideal for platforms, steps, and work areas.
Bearing and support: Strong structure supports heavy equipment in industrial facilities, bridges, docks, and warehouses.
Ventilation and light transmission: Open design promotes air circulation and natural lighting for basements, garages, and computer rooms.
Security fence: Can be used to create secure boundaries and controlled access areas.
Packing Details
  • Label attached to each grating with panel number identification
  • Steel brackets used for package stabilization (4 pcs for panels under 1500mm×1000mm)
  • PVC tape bundling for secure transport
  • Thermoplastic tag attached to each package for easy identification
  • Plastic film wrapping for protection
