Professional Industry Galvanized Steel Stainless Steel Grating Customized 0.5-2m Plain Type

Professional Manufacturer Of Industry Galvanized Steel Stainless Steel Grating Customized

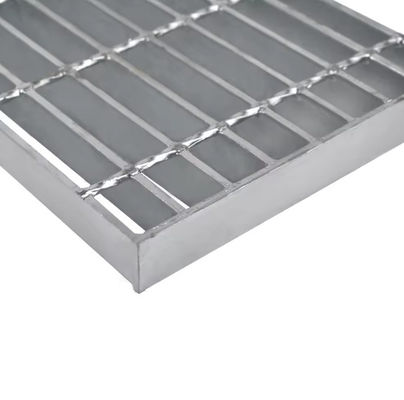

Steel grating is a kind of grid structure plate made of steel. It consists of horizontal and vertical interwoven steel bars or steel bars, forming a surface that is strong and has open holes.

Common Specification of Steel Grating
Remarks: Special Material, Special High Zinc Coating and New Style can be Customized.
Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10….. 100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 11/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment	Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar

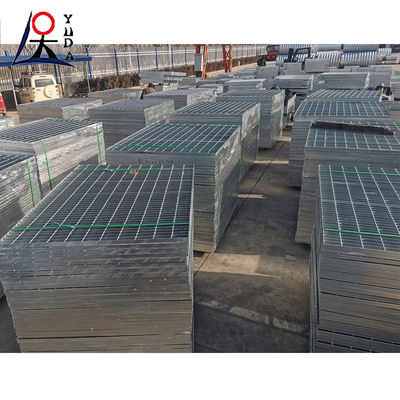

Packing	1) Bandage and Paperboard: Generally applies to neat steel plate; 2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; 3) Steel Pallet: Traditional export packing.
Payment Term	T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance



Steel grid plate features

1: High strength, light structure
2: Strong anti-corrosion ability, durable
3: Beautiful appearance, bright surface
4: no dirt, no rain, no water, self-cleaning, easy to maintain
5: ventilation, lighting, heat dissipation, anti-slip, explosion-proof

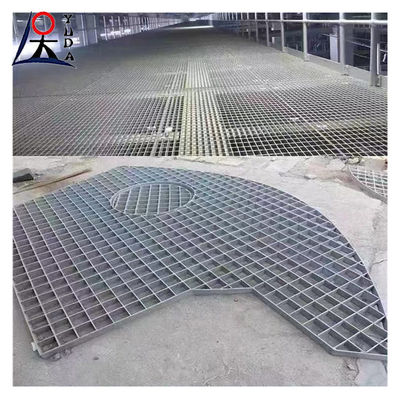

Steel grating finds applications in various sectors, including industrial plants, manufacturing facilities, oil and gas refineries, power plants, wastewater treatment plants, transportation infrastructure (such as bridges and highways), commercial buildings, and public spaces.

It is worth noting that while steel grating is a common term, there are different types and configurations available, such as welded steel grating, press-locked grating, and heavy-duty grating. The selection of the appropriate type depends on factors such as load requirements, span, and the environment in which it will be installed.
