Home /Products/Fiberglass Mesh/Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm

Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm

100 Square Meter
MOQ
US $0.15 - 0.35/ Square Meter
Price
Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiberglass Mesh
Key Words: Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm
Material: Fiberglass Yarn
Size: Can Be Custom Made
Alkali Content: Medium, High
Weight: 60g/m2, 75g/m2, 90g/m2, 110g/m2
Colors: White, Blue, Green, Orange, Etc
Standing Temperature: 300,High Temperature
Highlight:

Fire Resistant glass fiber cloth

,

145Gsm glass fiber cloth

,

Reinforcing glass fiber cloth
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Certification: IOS
Model Number: Glass fibre mesh
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 rolls/ day
Product Description

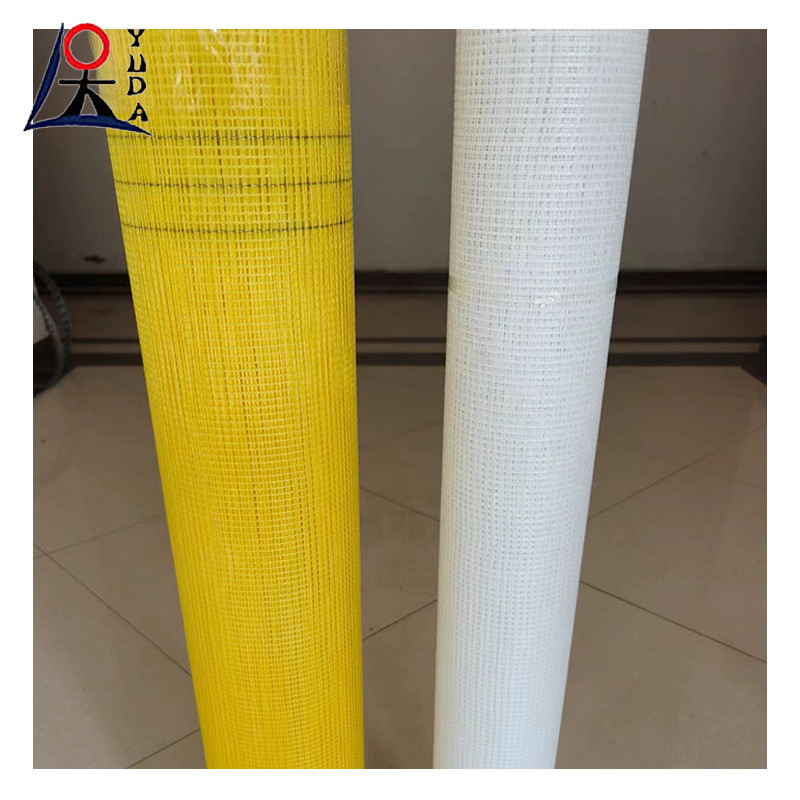

Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm





Fiberglass mesh fabric (Fiberglass mesh fabric) is a mesh fabric made of fiberglass yarn. It has excellent properties such as high strength, corrosion resistance, high temperature resistance and tensile resistance.

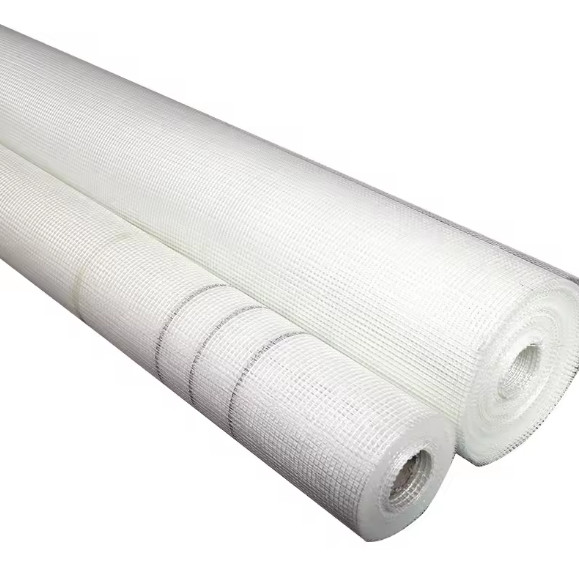

125g / 145g / 160g Glass Fiber Mesh Gypsum Cement Board Fiberglass mesh for Wall Plaster
Glass fiber gridding cloth roll is made of glass fiber and coated with polymer anti lotion. As a result, fiberglass mesh has good resistance to alkalinity, flexibility, and high tensile strength, and can be widely used for insulation, waterproofing, fire
prevention, crack resistance, and other purposes on both internal and external walls of buildings. Glass fiber mesh is mainly alkali resistant glass fiber mesh fabric, which is made of medium alkali free glass fiber yarn (mainly composed of silicate and good chemical stability) twisted into a special structure, and then subjected to high-temperature heat setting treatment such as alkali resistance and reinforcing agents.

Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm 0



Reinforced Fiberglass Wall Mesh Specification:
Item Number Yarn(Tex) Mesh(mm) Density Count/25mm Tensile Strength × 20cm Woven Structure Content of resin%
Warp Weft Warp Weft Warp Weft Warp Weft
45g2.5x2.5 33×2 33 2.5 2.5 10 10 550 300 Leno 18
60g2.5x2.5 40×2 40 2.5 2.5 10 10 550 650 Leno 18
70g 5x5 45×2 200 5 5 5 5 550 850 Leno 18
80g 5x5 67×2 200 5 5 5 5 700 850 Leno 18
90g 5x5 67×2 250 5 5 5 5 700 1050 Leno 18
110g 5x5 100×2 250 5 5 5 5 800 1050 Leno 18
125g 5x5 134×2 250 5 5 5 5 1200 1300 Leno 18
135g 5x5 134×2 300 5 5 5 5 1300 1400 Leno 18
145g 5x5 134×2 360 5 5 5 5 1200 1300 Leno 18
150g 4x5 134×2 300 4 5 6 5 1300 1300 Leno 18
160g 5x5 134×2 400 5 5 5 5 1450 1600 Leno 18
160g 4x4 134×2 300 4 4 6 6 1550 1650 Leno 18
165g 4x5 134×2 350 4 5 6 5 1300 1300 Leno

18



Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm 1

Glass fiber mesh cloth has the following characteristics:



High strength: Glass fiber has a high tensile strength and can provide effective reinforcement and support.
Corrosion resistance: Glass fiber will not be corroded and can be used stably in humid and acid-alkali environments for a long time.
High temperature resistance: glass fiber mesh cloth has good high temperature resistance and is suitable for application in high temperature environment.
Transparency: Some glass fiber mesh cloth has transparency, maintaining visual permeability, and does not affect the penetration of light.
Easy to install: Fiberglass mesh cloth is soft and flexible, easy to install and use in combination with other materials.





Reinforcing Fire Resistant Woven Roving Fabric Glass Fiber Cloth 145Gsm 2
