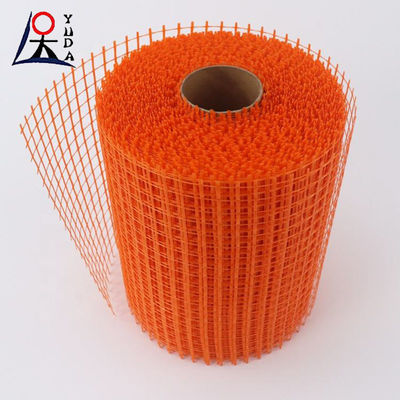

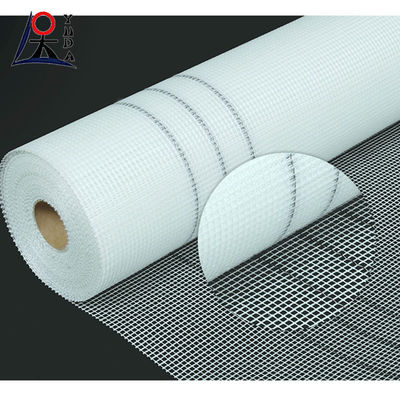

Name: Alkali Resistant Concrete fiberglass wall mesh Net For Wall 75g/m2 110g/m2 145g/m2 160g/m2
Brand: Anping Yuda Wire Mesh Co., Ltd.
SKU: Glass fibre mesh
Price: 0.15 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Fiberglass Mesh

Key Words: Fiberglass Mesh Alkali Resistant Concrete Fiberglass Wall Netting Mesh Net For Wall

Material: Fiberglass Yarn

Apertue: 4*4mm,5*5mm Etc.

Yarn Type: C-Glass/ Non-Glass

Resistant: Fire Resistant

Weight: 75g/m2, 110g/m2, 145g/m2, 160g/m2

Sample: Free

Highlight:

Alkali Resistant fiberglass wall mesh

145g fiberglass wall mesh

75g/m2 fiberglass wall mesh

Basic Infomation

Place of Origin: CHINA

Brand Name: YUDA

Certification: IOS

Model Number: Glass fibre mesh

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Customized according to buyer's requirements

Delivery Time: 3-10 day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000 rolls/ day

Gallery

Alkali Resistant Concrete fiberglass wall mesh Net For Wall 75g/m2 110g/m2 145g/m2 160g/m2

Product Description

Fiberglass Mesh Alkali Resistant Concrete Fiberglass Wall Netting Mesh Net For Wall

Fiberglass Mesh Building Reinforcement Fiberglass Net Fiberglass Mesh

Fiberglass Mesh Is Mainly Alkali Resistant Fiberglass Fabric, It Made Of The C Or E Glass Fiber Yarn (main Ingredient Is ASilicate, Good Chemical Stability) Through A Special Weaving Technique, Then Coated By The Antalkali And Reinforcing Agent And Treated By High Temperature Heat Finishing. It’s Ideal Engineering Material In Construction And Decoration.

After Surface Treatment, This Alkali-resistant Fiberglass Mesh Has Excellent Properties Including Water-resistance,Alkali-resistance, Flexibility, Softness And Resistance To Aging. It Is Widely Used In Reinforcing Walls, Natural Marble, Plaster Board, Artificial Stone Materials And Exterior Insulation Finishing System. It Is Also Widely Used For Renovating Building Surface.

Glass fiber mesh,fiberglass plaster net,fiberglass mesh netting
SPECIFICATION
Material:		Fiberglass Yarn
Coating:		Latex, Urine Glue
Weight (grams/sq m):		60g - 300g/m²
Length:		10m-300m
Width:		4.5cm-2m
Color:		White(standard),red, yellow, blue, green, gray, black or other colors
Mesh Size	Density(grams/sqm)		Width(m)	Length per roll(m)
4 x 5	160		4.5cm-2m	10-300m
5 x 5	80,100,125,145
6 x 6	240,300
Other specifications , accept customization

Alkali Resistant Concrete fiberglass wall mesh Net For Wall 75g/m2 110g/m2 145g/m2 160g/m2 1

Reinforced Fiberglass Wall Mesh Specification:

Item Number	Yarn(Tex)		Mesh(mm)		Density Count/25mm		Tensile Strength × 20cm		Woven Structure	Content of resin%
Item Number	Warp	Weft	Warp	Weft	Warp	Weft	Warp	Weft
45g2.5x2.5	33×2	33	2.5	2.5	10	10	550	300	Leno	18
60g2.5x2.5	40×2	40	2.5	2.5	10	10	550	650	Leno	18
70g 5x5	45×2	200	5	5	5	5	550	850	Leno	18
80g 5x5	67×2	200	5	5	5	5	700	850	Leno	18
90g 5x5	67×2	250	5	5	5	5	700	1050	Leno	18
110g 5x5	100×2	250	5	5	5	5	800	1050	Leno	18
125g 5x5	134×2	250	5	5	5	5	1200	1300	Leno	18
135g 5x5	134×2	300	5	5	5	5	1300	1400	Leno	18
145g 5x5	134×2	360	5	5	5	5	1200	1300	Leno	18
150g 4x5	134×2	300	4	5	6	5	1300	1300	Leno	18
160g 5x5	134×2	400	5	5	5	5	1450	1600	Leno	18
160g 4x4	134×2	300	4	4	6	6	1550	1650	Leno	18
165g 4x5	134×2	350	4	5	6	5	1300	1300	Leno	18

Alkali Resistant Concrete fiberglass wall mesh Net For Wall 75g/m2 110g/m2 145g/m2 160g/m2 2

Main characteristics

1.Good chemical stability: Alkali-resistant, acid-resistant, waterproof,, cement erosion-resistant, and other chemicals' corrosion resistant; and strong resin bonding, soluble in styrene.

2.Good dimensional stability, stiffness, smoothness an difficult to shrink and deformation, good positioning property..

3.Good impact resistance and not easy to be teared.

4.Fire resistant, thermal insulation, sound insulation, insulations etc.

Alkali Resistant Concrete fiberglass wall mesh Net For Wall 75g/m2 110g/m2 145g/m2 160g/m2 3

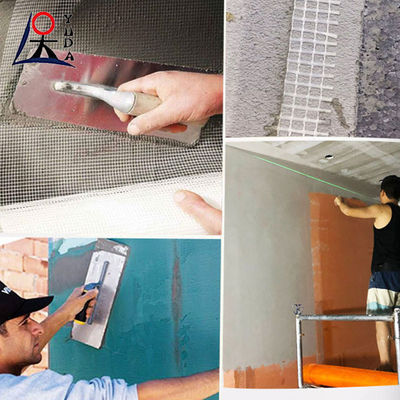

Product Application

1).75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface ressure.
2).110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .
3). 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures),to prevent cracking the scatter and whole surface pressure, especially in the external wall insulation system (EIFS ).
4). 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providinga space to movement maintain between the layers,prevent crack and rupture due or temperature change.
