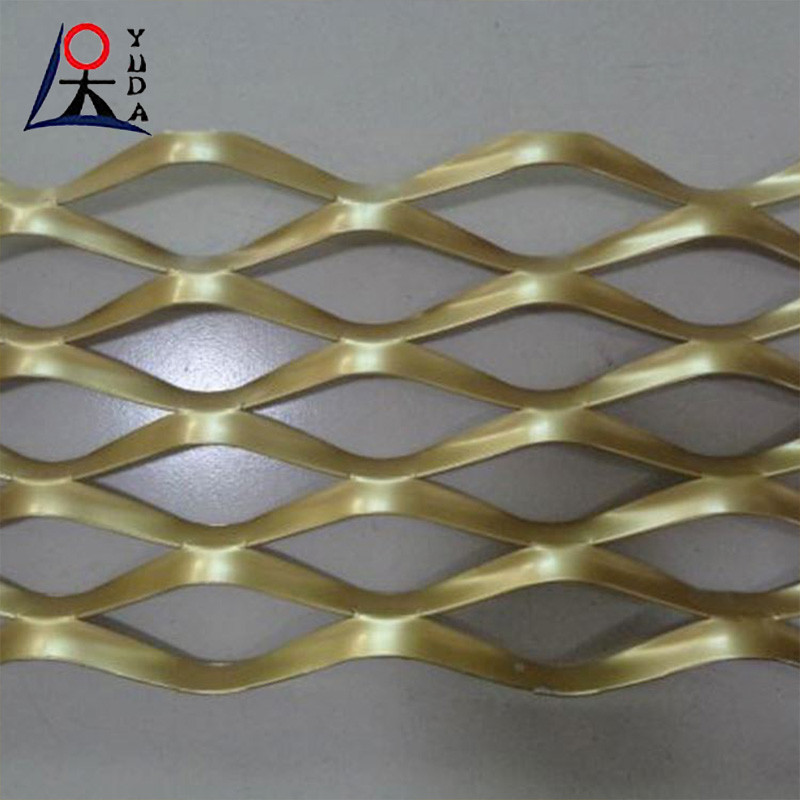

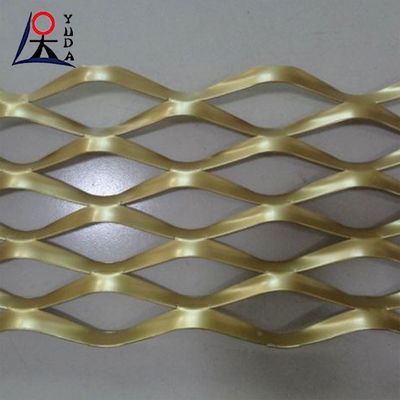

Aluminum Sheet Expanded Metal Mesh Diamond Shape Expandable Wire Mesh
Expanded metal mesh comes in two forms: raised expanded metal and flattened expanded metal. Raised expanded metal is also known as standard expanded metal, it has diamond openings with slightly raised surface.
Flattened expanded metal is manufactured by passing the standard expanded sheet through a cold roll reducing mill, forming diamond openings with flat surface.
Expanded metal mesh has a diverse range of properties, which makes it a versatile material that can be used throughout a variety of industries.
Expanded metal mesh is manufactured with the use of an expanding machine. Metal sheets or coils are fed through the machine to be slit and stretched simultaneously. The result is a mesh product with no joins or welds, formed from a process that produces minimum waste.
Materials: aluminum plate, aluminum magnesium alloy plate.
Specification:
LWD:3mm~200mm;
SWD: 2mm~150mm;
Plate thickness:0.2mm~9mm;
Strand width:0.3-5mm
Range of roll length:1m~30m;
Roll width:10mm~1250mm.
Width: maximum up to 3M
Hole shape:Diamond hole ,square hole,scale hole
Hole type :Raised /standard hole,Flattened hole.

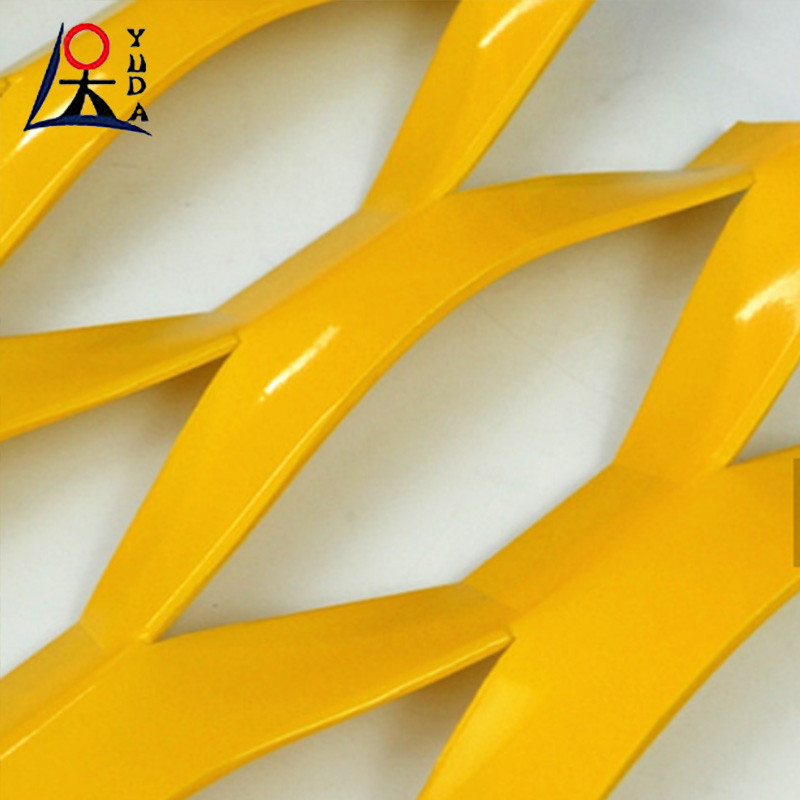

Surface treatment & tech: baking varnish, anodic oxidation,PVC / powder coated,pvdf.
Characteristics: Light-duty, corrosion resistance,beautiful and long service life.
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful

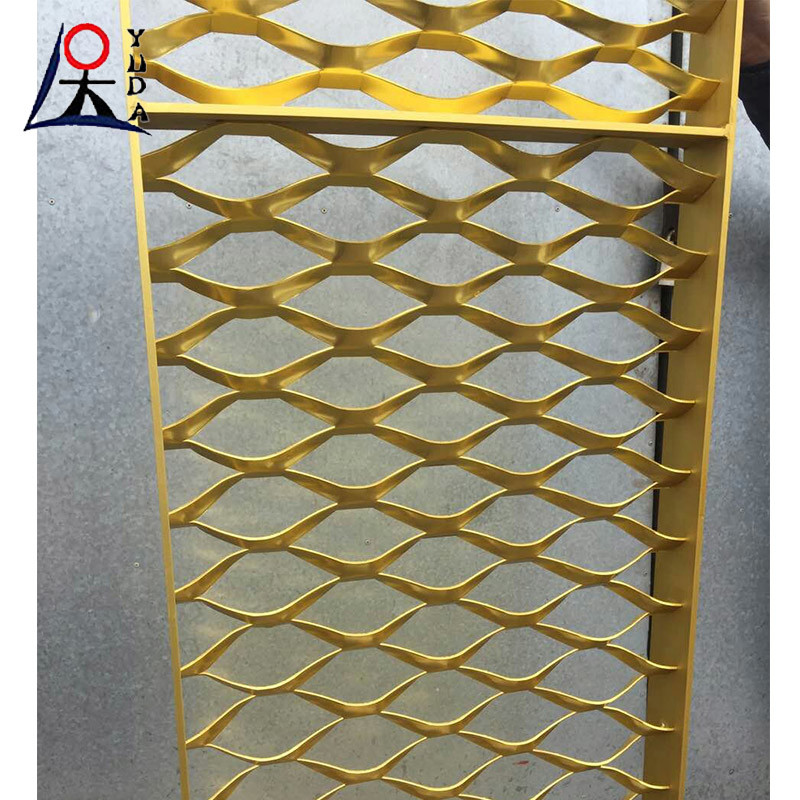

Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed
Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.
| Specifications of expanded metal mesh |
| Tickness(mm) |
SWD(mm) |
LWD(mm) |
Wire stems width(mm) |
Width(m) |
Length(m) |
Weight(kg/m2) |
| 0.5 |
2.5 |
4.5 |
0.5 |
0.5 |
1 |
1.8 |
| 0.5 |
10 |
25 |
0.5 |
0.6 |
2 |
0.73 |
| 0.6 |
10 |
25 |
1 |
0.6 |
2 |
1 |
| 0.8 |
10 |
25 |
1 |
0.6 |
2 |
1.25 |
| 1 |
10 |
25 |
1.1 |
0.6 |
2 |
1.77 |
| 1 |
15 |
40 |
1.5 |
2 |
4 |
1.85 |
| 1.2 |
10 |
25 |
1.1 |
2 |
4 |
2.21 |
| 1.2 |
15 |
40 |
1.5 |
2 |
4 |
2.3 |
| 1.5 |
15 |
40 |
1.5 |
1.8 |
4 |
2.77 |
| 1.5 |
23 |
60 |
2.6 |
2 |
3.6 |
2.77 |
| 2 |
18 |
50 |
2.1 |
2 |
4 |
3.69 |
| 2 |
22 |
60 |
2.6 |
2 |
4 |
3.69 |
| 3 |
40 |
80 |
3.8 |
2 |
4 |
5 |
| 4 |
50 |
100 |
4 |
2 |
2 |
11.15 |
| 4 |
60 |
120 |
4 |
2 |
7.5 |
4 |
