Product Name | Fiberglass Mesh |
Material | Fiberglass Yarn |
Size | Can be custom made |
Colors | White, Yellow, Blue |
Aperture | 4×4mm, 5×5mm etc. |
Coating | Emulsion coated, Urea glue coated |

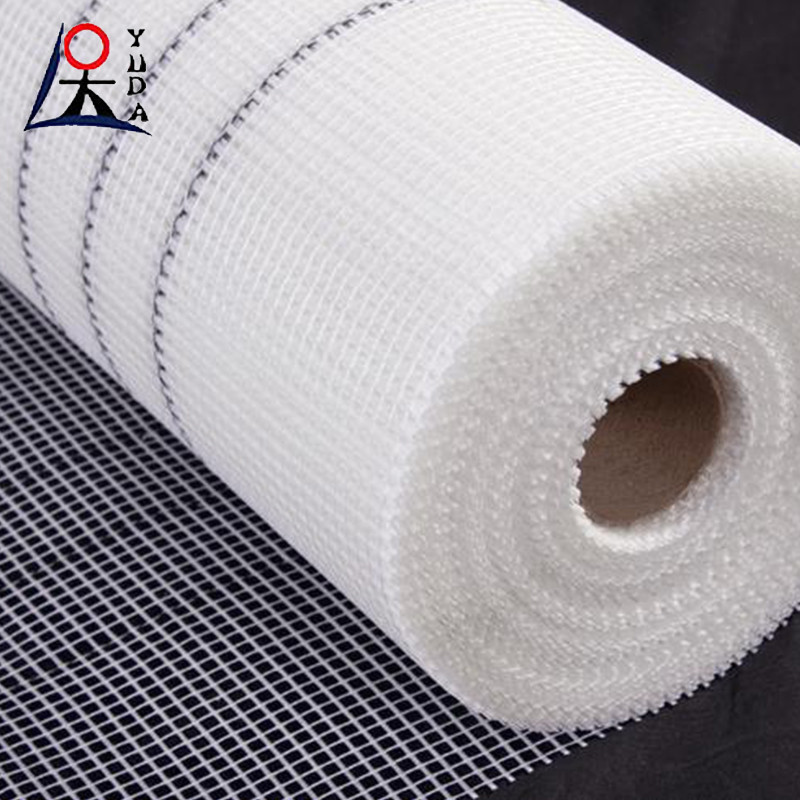

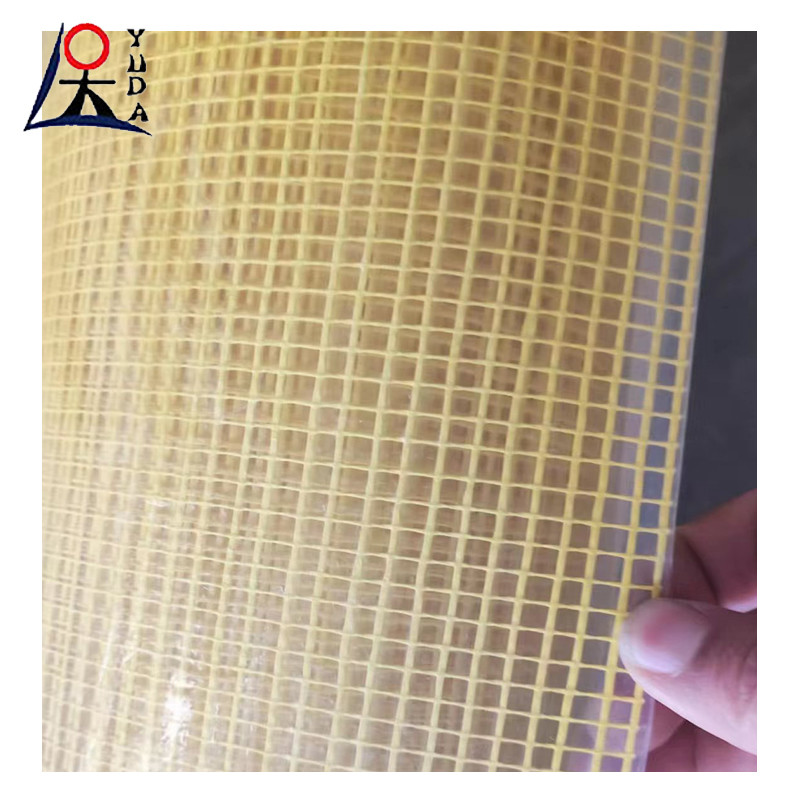

Fiberglass mesh is primarily alkali-resistant fiberglass fabric, made from C or E glass fiber yarn (main ingredient is silicate with excellent chemical stability) through special weaving techniques, then coated with antalkali and reinforcing agents and treated with high-temperature heat finishing. It's an ideal engineering material for construction and decoration applications.
Item Number | Yarn (Tex) | Mesh (mm) | Density Count/25mm | Tensile Strength × 20cm | Woven Structure | Resin Content % |
---|---|---|---|---|---|---|
45g2.5x2.5 | 33×2 | 2.5×2.5 | 10×10 | 550×300 | Leno | 18 |
60g2.5x2.5 | 40×2 | 2.5×2.5 | 10×10 | 550×650 | Leno | 18 |
70g 5x5 | 45×2 | 5×5 | 5×5 | 550×850 | Leno | 18 |
80g 5x5 | 67×2 | 5×5 | 5×5 | 700×850 | Leno | 18 |
90g 5x5 | 67×2 | 5×5 | 5×5 | 700×1050 | Leno | 18 |
110g 5x5 | 100×2 | 5×5 | 5×5 | 800×1050 | Leno | 18 |
125g 5x5 | 134×2 | 5×5 | 5×5 | 1200×1300 | Leno | 18 |
135g 5x5 | 134×2 | 5×5 | 5×5 | 1300×1400 | Leno | 18 |
145g 5x5 | 134×2 | 5×5 | 5×5 | 1200×1300 | Leno | 18 |
150g 4x5 | 134×2 | 4×5 | 6×5 | 1300×1300 | Leno | 18 |
160g 5x5 | 134×2 | 5×5 | 5×5 | 1450×1600 | Leno | 18 |
160g 4x4 | 134×2 | 4×4 | 6×6 | 1550×1650 | Leno | 18 |
165g 4x5 | 134×2 | 4×5 | 6×5 | 1300×1300 | Leno | 18 |
