Steel Panel Sound Barrier for Highway and Railway Noise Reduction

50 Piece
MOQ
Determined by size and quantity
Price
Steel Panel Sound Barrier for Highway and Railway Noise Reduction
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sound Barrier
Key Words: Outdoor Sound Barrier
Panel Style: Steel Panel, PC Board
Application: Highway,Railway,Noise Barrier,etc
Panel Thickness: At Your Requst
Panel Length: 2m~4m Can Custom
Feature: High Stability, Eco-friendly, Effective Railway Noise Barrier
Sheets Thickness: 0.8-1mm, Can Be Customized
Highlight:

Traffic Noise Barriers Soundproof Sheets

,

Multi Functional Soundproof Sheets

,

Multi Functional sound insulation panels
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Sound barrier
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200000 Meters/ day
Product Description
Multi Functional Soundproof Sheets Sound Insulation Panels For Traffic Noise Barriers
Product Overview

Our sound barriers effectively block noise wave propagation, significantly reducing traffic noise impact on surrounding environments like residential areas.

Key Features
  • High stability and eco-friendly design
  • Effective railway and highway noise reduction
  • Customizable panel thickness (0.8-1mm standard, customizable)
  • Panel length options from 2m to 4m (customizable)
  • Available in steel panel or PC board styles
  • Suitable for highway, railway, and various noise barrier applications
Technical Specifications
Material Options Steel sheet, aluminum sheet, PC Acrylic board
Inner Material Glass wool
Standard Panel Size Width: 500mm, Length: 2000mm (customizable up to 4m)
Standard Heights 2,000mm, 2,500mm, 3,000mm (customizable)
Pole Spacing 1,000mm, 2,000mm, 2,500mm (customizable)
Surface Treatment Electrostatic powder coating, fluorocarbon spraying
Color Options Green 6029, blue 5017, gray 7042, white 9010 (custom colors available)
Material Advantages

Acrylic outperforms tempered glass for noise reduction with exceptional light transmission and lighter weight for easier handling. It offers high transparency for driver visibility, excellent weather resistance, and customizable aesthetics.

Components & Specifications
Component Material Options Specifications
Noise Barrier Panel Galvanized sheet, aluminum alloy, color plate Standard sizes: 500×2000×80(100)mm, 500×2000×120mm, 1000×2000×80(100)mm
Transparent Material Glass, PC board, acrylic board Customizable surface patterns and hole configurations
H-Shape Post Q235B steel Common sizes: 100×100×6×8 to 175×175×7×11, heights 2m-6m (up to 12m)
Noise Absorb Material Glass wool, rock wool, acoustic felt, foam aluminum fiber Water-repellent options available
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: What certificate do you have?
A: We have ISO and CE certificate.
Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products' quality.
Q: How long is the warranty period?
A: All of our products have one year warranty.
Q: What's the main market of your company?
A: We have customers all over the world.
Product Images

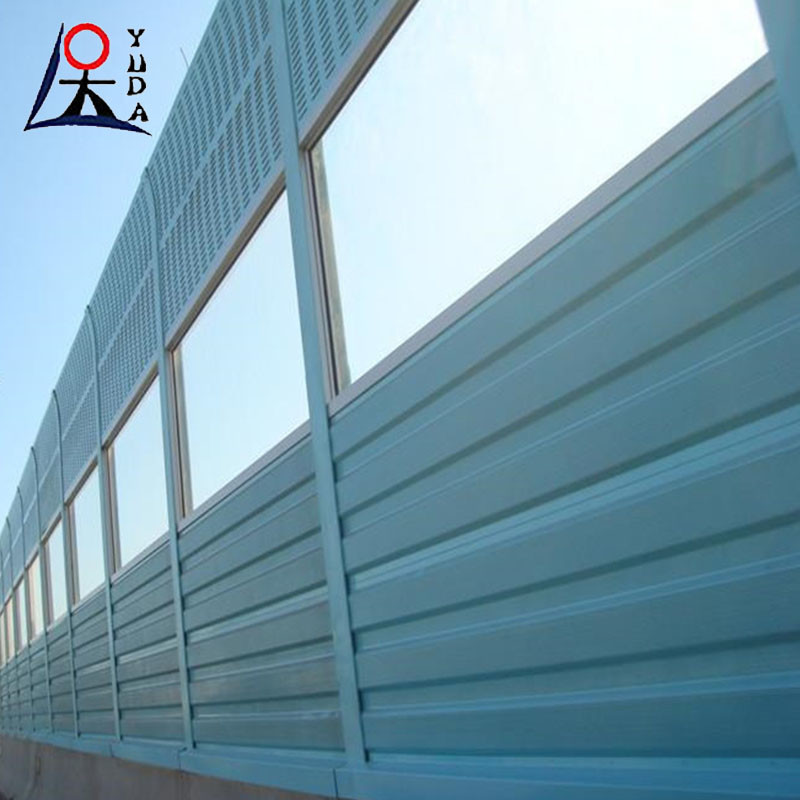

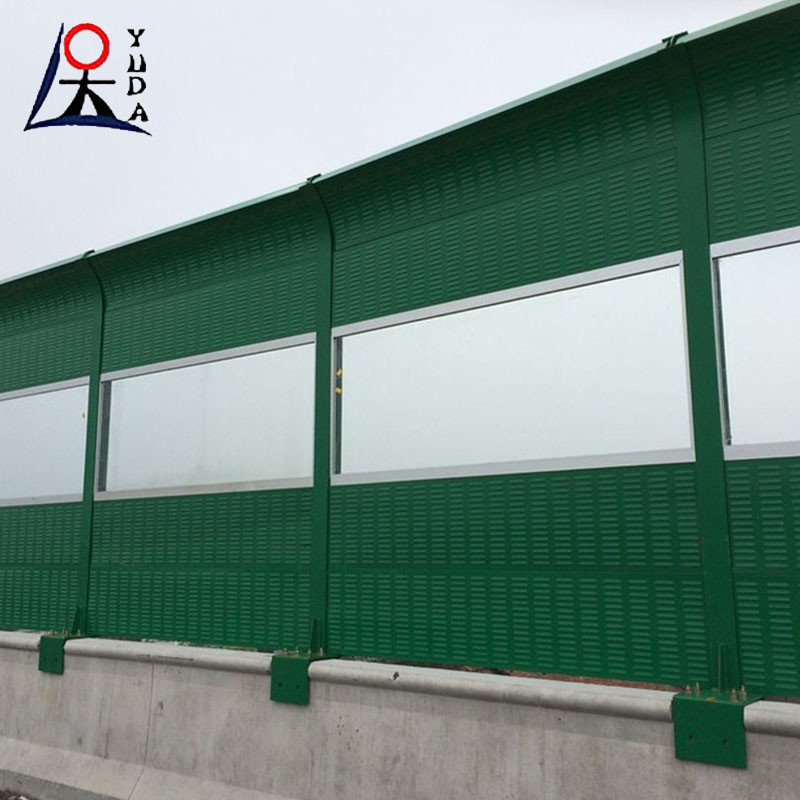

Steel Panel Sound Barrier for Highway and Railway Noise Reduction 0 Steel Panel Sound Barrier for Highway and Railway Noise Reduction 1 Steel Panel Sound Barrier for Highway and Railway Noise Reduction 2
