Steel Panel Sound Barrier for Highway and Railway Noise Reduction

50 Piece
MOQ
Determined by size and quantity
Price
Steel Panel Sound Barrier for Highway and Railway Noise Reduction
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sound Barrier
Key Words: Outdoor Sound Barrier
Panel Style: Steel Panel, PC Board
Application: Highway,Railway,Noise Barrier,etc
Panel Thickness: At Your Requst
Panel Length: 2m~4m Can Custom
Feature: High Stability, Eco-friendly, Effective Railway Noise Barrier
Sheets Thickness: 0.8-1mm, Can Be Customized
Highlight:

Road Noise Barrier Acoustic Panel

,

Highway Metal Soundproof Wall

,

Metal Soundproof Wall Acoustic Panel
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Sound barrier
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200000 Meters/ day
Product Description
Highway Metal Soundproof Wall Acoustic Barrier Panel
Product Overview
Noise barriers (soundproof walls) are facilities inserted between sound sources and receivers that provide significant acoustic wave attenuation, effectively reducing noise in designated areas.
Key Features
  • High stability and eco-friendly design
  • Effective noise reduction for highways and railways
  • Customizable panel thickness (0.8-1mm standard)
  • Panel length adjustable from 2m to 4m
  • Multiple material options available
Technical Specifications
Attribute Value
Product Name Sound barrier
Panel Style Steel panel, PC board
Application Highway, Railway, Noise Barrier
Panel Thickness Customizable
Panel Length 2m~4m (customizable)
Construction Details
The noise barrier system consists of steel structure columns and screen panels. Columns serve as the primary load-bearing components, fixed via bolts or welding to road or track infrastructure. Sound insulation panels are secured to H-shaped steel columns using high-strength spring clips.
Material Options
Component Options
Noise Barrier Panel Galvanized sheet, aluminum alloy sheet, color plate
Transparent Material Glass, PC board, acrylic board
Other Materials High strength cement, cement wood chips, fiberglass
Noise Absorbing Material Glass wool, rock wool, water-repellent cloth, acoustic felt, foam aluminum fiber
Standard Specifications
  • Aperture ratio: ≥25%
  • Common sizes: 500×2000×80(100)mm, 500×2000×120mm, 1000×2000×80(100)mm
  • Surface treatments: Electrostatic powder coating, fluorocarbon spraying
  • Available colors: Green 6029, Blue 5017, Gray 7042, White 9010 (custom colors available)
  • Noise reduction: 10-15dB(A) (125Hz-40000Hz)
Frequently Asked Questions
What makes your fence products different from other companies?
We provide free design services, customization options, and warranty coverage with strict quality control and competitive pricing.
Can I get a sample of your products?
Yes, free samples are available upon request.
What materials do you use for fencing?
We primarily use low carbon steel wire, with high tension strength steel wire for razor wire cores and Q235 material for posts.
Will my fence rust, peel, fade or chip?
With proper maintenance and absent physical damage or chemical exposure, the surface can last over 10 years.
Product Images

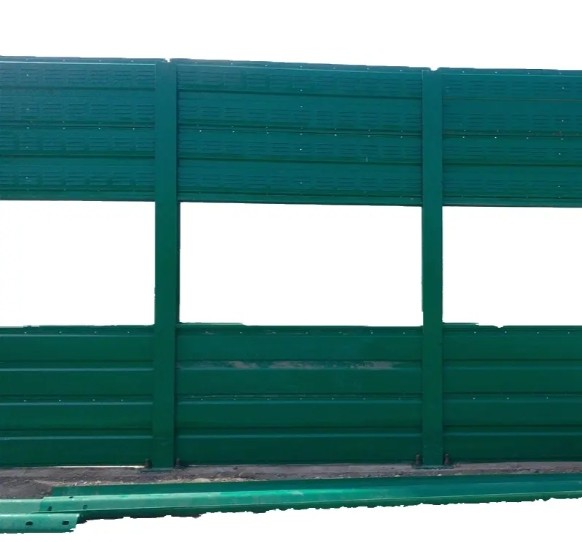

Steel Panel Sound Barrier for Highway and Railway Noise Reduction 0

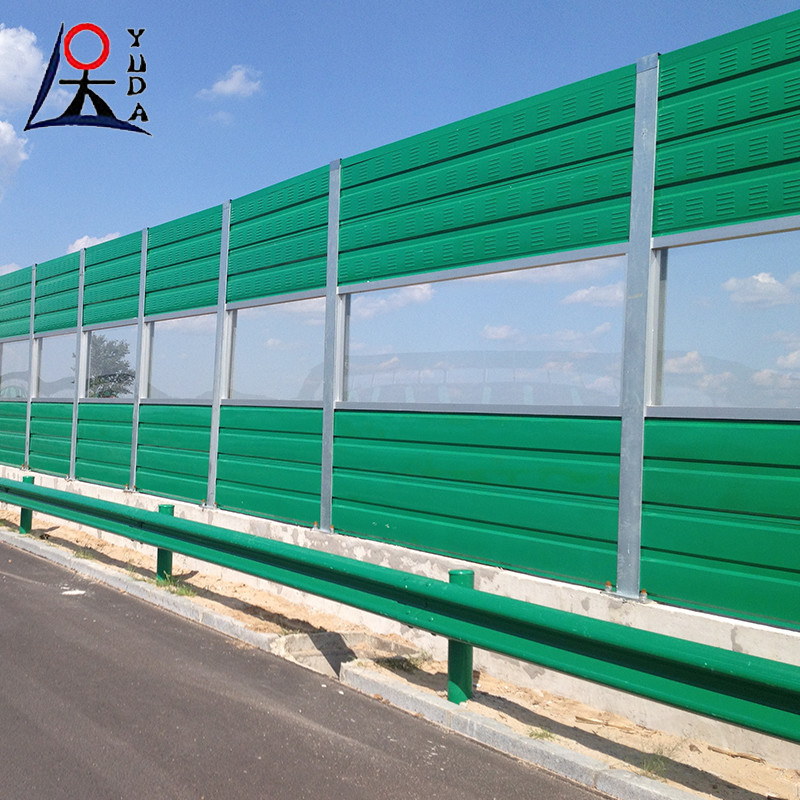

Steel Panel Sound Barrier for Highway and Railway Noise Reduction 1
Steel Panel Sound Barrier for Highway and Railway Noise Reduction 2
