Home /Products/Road Noise Barrier/Galvanized Steel Sound Barrier Highway Noise Barrier Proof Wall Fence

Galvanized Steel Sound Barrier Highway Noise Barrier Proof Wall Fence

50 Piece
MOQ
Determined by size and quantity
Price
Galvanized Steel Sound Barrier Highway Noise Barrier Proof Wall Fence
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sound Barrier
Key Words: Outdoor Sound Barrier
Panel Style: Steel Panel, PC Board
Application: Highway,Railway,Noise Barrier,etc
Panel Thickness: At Your Requst
Panel Length: 2m~4m Can Custom
Feature: High Stability, Eco-friendly, Effective Railway Noise Barrier
Sheets Thickness: 0.8-1mm, Can Be Customized
Highlight:

Highway Noise Barrier Wall Fence

,

Galvanized Steel Sound Barrier

,

Proof Wall Fence Sound Barrier
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Sound barrier
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Meters/ day
Product Description

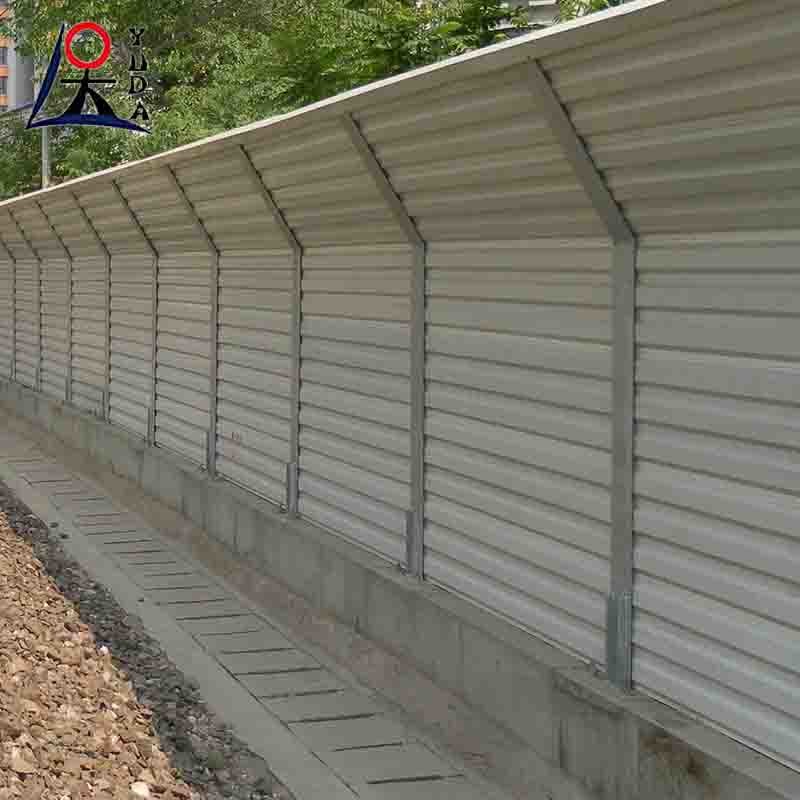

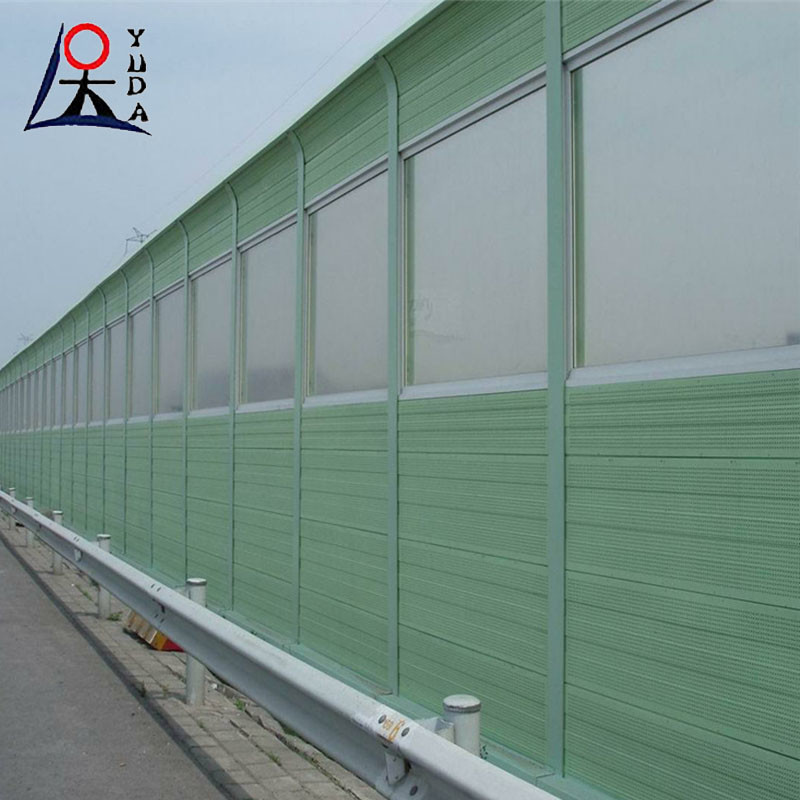

Galvanized Steel Sound Barrier Highway Noise Barrier Proof Wall Fence​



Sound barrier is made of aluminum or galvanized metal and fulfill eco-friendly natural plant fiber. The panels range from one-sided or double-sided highly absorbing quality and are also available in transparent design. The high quality and UV-resistant powder coating gives an appealing appearance to the noise barrier.



Metal panel
Metal type: galvanized sheet, aluminum sheet.
Appearance: perforated type, louver type.
Panel size: 1960~3960 mm length
500~1000 mm height
80~120mm thickness.
Other size can be customized according to your requirement.
Color: RAL colours

Acrylic / Polycarbonate panel
Thickness: 6~20mm
Density: 1.2g/m3
Light transmittance: over 90% for transparent color
Color: clear, bronze, green, blue, opal etc.
Safety: 10times stronger than normal glass and twice as tempered glass, almost no risk of breaking.
Life time: over 10years.

H-column
Size: 100 x 100 x 6 x 8 mm; 125 x 125 x 6.5 x 9 mm; 150 x 150 x 7 x 10 mm; 175 x 175 x 7.5 x 11 mm.
Finish: hot dipped galvanized & powder coated

Parts list
Items
Product description
Noise barrier panel
Metal material
Galvanized sheet aluminum alloy sheet, color plate
Transparent material
Glass, PC board, acrylic board, etc.
Other material
High strength cement, cement wood chips, glass steel, etc.
Hole pattern
Louver holes; common hole spacing 20*137, 20*182
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances
Aperture ratio
Not less than 25%
Common size
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
surface concave groove
Can be customized according to drawings or customer requirements
Surface treatment
Electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
H shape post
Material
Q235B
Common size
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
Common height
2m-6m up to12m
Flange
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
Surface treatment
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
Noise absorb material
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.



Packing details
1. rubber mat at the bottom of the pallet to avoid the pallet destroyed the panel.
2. metal corners to keep the pallet more strong and wood plate on the panel pallet.
3. the metal plate under the plastic bandage to a pressure for fence panel.
4.according your request



Galvanized Steel Sound Barrier Highway Noise Barrier Proof Wall Fence 0Galvanized Steel Sound Barrier Highway Noise Barrier Proof Wall Fence 1
