Grassland Hinge Knot High Tensile Galvanized Iron Wire Sheep Yard Fence

10 roll
MOQ
Decided based on requirements
Price
Grassland Hinge Knot High Tensile Galvanized Iron Wire Sheep Yard Fence
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Field Fence
Key Words: High Tensile Strength
Material: Low-Carbon Iron Wire
Application: Fence Mesh,grassland,sheep
Height: 0.8-2.0m Or As Your Demand
Length: 50m 100m Or As Your Request
Usage: Protecting Wire Mesh Fence
Diameter: CUSTOMIZED
Highlight:

Grassland Hinge Knot Sheep Yard Fence

,

High Tensile Sheep Yard Fence

,

Sheep Hinge Joint Field Fence

Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Field fence
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 roll/ day
Product Description

Grassland Hinge Knot High Tensile Galvanized Iron Wire Sheep Yard Fence

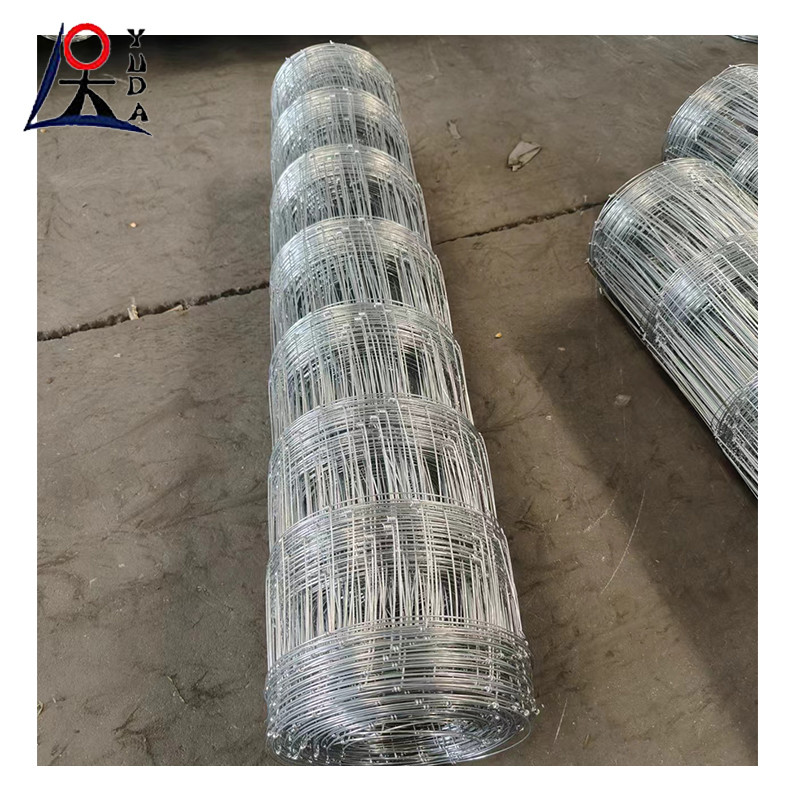

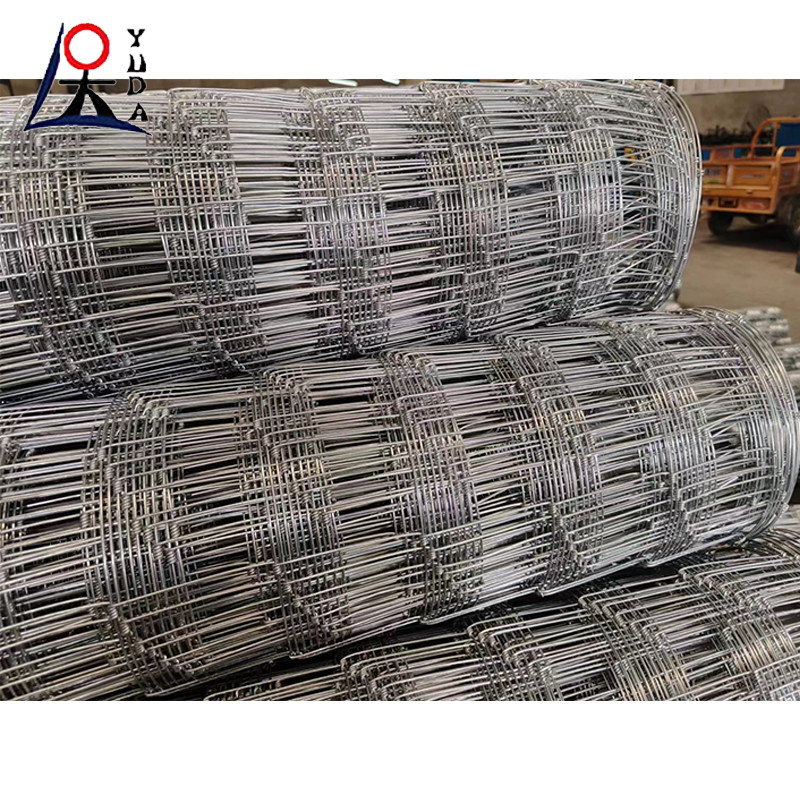

The fence also can make custom sized, you can tell us your requirements then we can design the suitable fence for you. Please check the Photos it is the one we made for our customers from New Zealand, they want the more strength of the edge wire, so we use the double wire to make the Edge of the field fence, it has more high tensile avoiding the animals attacked the fence



There are different types of the “ knot “ can be made. We can make it according to customers request. The Hinge Joint Knots and the Fixed Knots have difference advanced. The hinge joint knots is the most common knot in agricultural fencing. The Fixed Knots fence increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.

The Stay wire and the Line wire can be adjusted. It can make to be a few wires or more wires according to the farmland request. For example, if your only for Person proof you just can choose the bigger line wire distance. If you need proof the small animals get through, then you can choose with more lines wire and the vertical wire distance can be smaller too.

Hinge Joint Knots and Fixed Knots Fence Specification
Height Range: 0.6 to 2.5 meter available.
Vertical wire distance : 50, 100,150,200,250,300,350,400mm available
Length : 50 Meter , 100 Meter and 150 Meter available .
Wire Material Finishing: Hot Dipped Galvanized, Electro Galvanized.

On the basis of the ordinary Field fence, an advanced pressure wave process is adopted, and one or two deep 12 mm wide and 40 mm bends are pressed on each mesh of the horizontal wire.T his kind of technology makes the mesh surface flatter and effectively enhances the elasticity of the mesh surface. It alleviates the deformation of the mesh surface caused by thermal expansion and contraction in areas with large climate change in winter and summer. Since the ripple increases the cushioning force of the mesh surface, the mesh surface can automatically return when the beast hits.



Style specification
weight
kg
Edge
wire mm
Inner
wire mm
7/150/813/50
102+114+127+140+152+178
19.3
2.5
2.0
8/150/813/50
89(75)+89+102+114+127+140+152
20.8
2.5
2.0
8/150/902/50
89+102+114+127+140+152+178
21.6
2.5
2.0
8/150/1016/50
102+114+127+140+152+178+203
22.6
2.5
2.0
8/150/1143/50
114+127+140+152+178+203+229
23.6
2.5
2.0
9/150/991/50
89(75)+89+102+114+127+140+152+178
23.9
2.5
2.0
10/150/1245/50
102+114+127+140+152+178+203+229
26.0
2.5
2.0
10/150/1194/50
89(75)+89+102+114+127+140+152+178+203+229
27.3
2.5
2.0
19/150/1442/50
89+102+114+127+140+152+178+203+229
28.4
2.5
2.0
11/150/1442/50
89(75)+89+102+114+127+140+152+178+203+229
30.8
2.5
2.0



Grassland Hinge Knot High Tensile Galvanized Iron Wire Sheep Yard Fence 0Grassland Hinge Knot High Tensile Galvanized Iron Wire Sheep Yard Fence 1Grassland Hinge Knot High Tensile Galvanized Iron Wire Sheep Yard Fence 2
