Name: Low Carbon Steel Expanded Metal Mesh Expandable Metal Fence
Brand: Anping Yuda Wire Mesh Co., Ltd.
SKU: Expanded metal mesh
Price: 3.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Expanded Metal Mesh

Key Words: Highly Corrosive And Durable

Material: Low Carbon Steel /stainless Steel / Aluminum/copper Etc.

Hole Shape: Diamond Hole, Hexagonal, Etc,

Thickness: 0.1 - 8mm Or Custom

Length: 1-50m/roll , Customers' Requirement

Width: 0.5-2m, Customers' Requirement

Wire Diameter: Requirement

Highlight:

Low Carbon Steel Expanded Mesh

Expandable Metal Fence Mesh

Low Carbon expanded steel mesh

Basic Infomation

Place of Origin: CHINA

Brand Name: YUDA

Model Number: Expanded metal mesh

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Customized according to buyer's requirements

Delivery Time: 3-10 day

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 200000 Meters/ day

Gallery

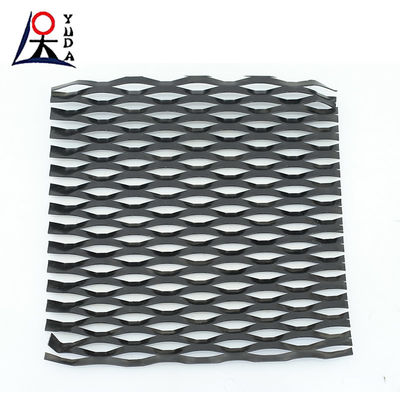

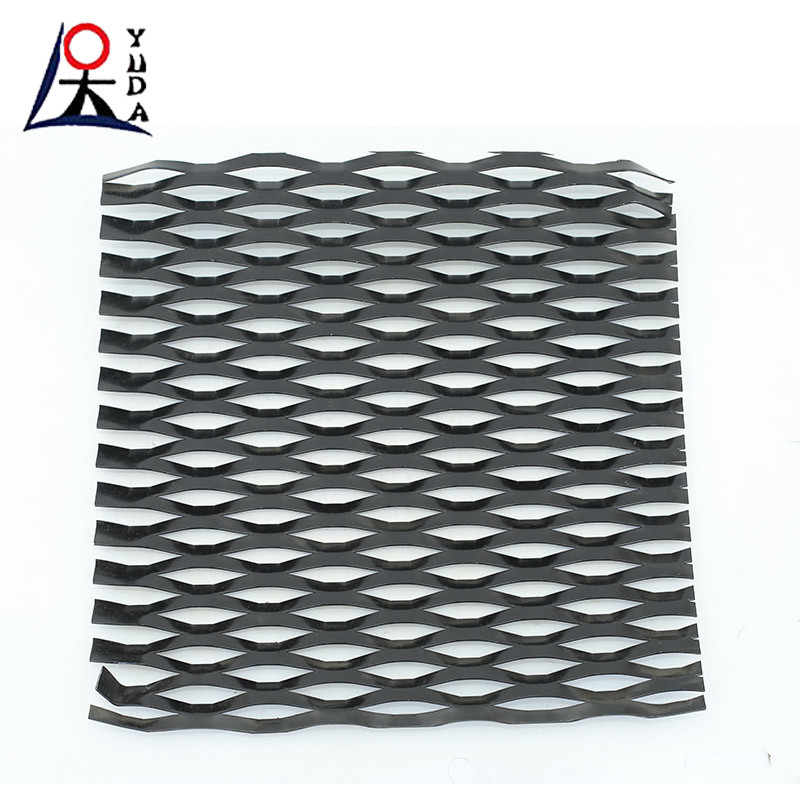

Low Carbon Steel Expanded Metal Mesh Expandable Metal Fence

Product Description

Low Carbon Steel Expanded Metal Mesh Expandable Metal Fence

Production process: The metal sheet is mainly processed into a mesh shape through stamping, stretching, shearing and other processes. Firstly, use punching machines and other equipment to punch rows of holes on the metal plate, then use stretching technology to enlarge the holes and form diamond shaped or other shaped mesh holes, and finally perform subsequent processing such as cutting, bending, and edging as needed.

characteristic
High strength: After expansion, the strength of the steel plate can be increased to more than three times its original value, with a load-bearing capacity of over 1 ton per square meter and a tensile strength of 500KN/meter per linear meter, capable of withstanding significant pressure and impact forces.

Durable and sturdy: The entire structure is connected by a uniform diamond grid without welding points, which is sturdy, not easy to damage, durable, and can be reused multiple times.

Good anti slip performance: The diamond shaped mesh forming the mesh is overlapped and connected vertically, resembling a flat fish scale shape, with good anti slip performance, which can effectively prevent personnel from slipping.

Good permeability: The mesh is uniform, the mesh surface is flat, and it has good ventilation, lighting, and perspective effects. It can be used in places that require ventilation or observation, such as guardrails, fences, etc.

Easy to process: can be cut, bent, wrapped and processed according to needs, and can also undergo various surface treatments such as galvanizing, dipping, spraying, etc. to meet different usage and environmental requirements.

Thickness	SWD	LWD	Wire stems width	Width	Length	Weight
(mm)	(mm)	(mm)	(mm)	(m)	(m)	(kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25

Low Carbon Steel Expanded Metal Mesh Expandable Metal Fence 0
