Customizable Galvanized Expanded Metal Mesh With Raised Diamond Holes Thickness 0.1 8mm Width Customers' Requirement

50 Meters
MOQ
Further discussion based on quantity
Price
Customizable Galvanized Expanded Metal Mesh With Raised Diamond Holes Thickness 0.1 8mm Width Customers' Requirement
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Expanded Metal Mesh
Key Words: Highly Corrosive And Durable
Material: Low Carbon Steel /stainless Steel / Aluminum/copper Etc.
Hole Shape: Diamond Hole, Hexagonal, Etc,
Thickness: 0.1 - 8mm Or Custom
Length: 1-50m/roll , Customers' Requirement
Width: 0.5-2m, Customers' Requirement
Wire Diameter: Requirement
Highlight:

0.1 8mm Galvanized Expanded Metal Mesh

,

Customizable Galvanized Expanded Metal Mesh

,

Raised Diamond expanded wire mesh
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Expanded metal mesh
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200000 Meters/ day
Product Description

Galvanized Expanded Metal Mesh Raised Diamond Hole Expanded Metal Mesh



With core advantages such as high strength, lightweight, multifunctionality, and easy maintenance, the board mesh has demonstrated irreplaceable value in fields such as construction, industry, and transportation. Its design flexibility (mesh size, material, surface treatment options) further expands the application boundaries and becomes the preferred material in modern engineering that combines practicality and innovation. If specific scenario selection suggestions are needed, the plan can be further refined based on load requirements, environmental conditions, and other parameters.

Specification parameters
Short Pitch (SWM): The length of a short diamond diagonal from the center of a node to the center of the node, typically between 5-80mm.
Long Pitch (LWM): The length of the long diamond diagonal from the center of a node to the center of the node, typically 12.5-200mm.
Mesh size: The length is generally between 600-4000mm and the width is between 600-2000mm.
Thickness: The thickness of the original steel plate can produce steel mesh products with a thickness of 0.5-8mm.

Environmental and economic advantages
Recyclable materials
The main body is made of metal material, which can be completely recycled and reused after being scrapped, in line with the concepts of green building and circular economy.

Low overall cost
Although the initial procurement cost is slightly higher than that of ordinary wire mesh, its long lifespan and low maintenance cost make it more cost-effective for long-term use. For example, the average annual cost of hot-dip galvanized steel mesh is only 1/3 to 1/2 of that of ordinary wire mesh.



Thickness
SWD
LWD
Wire stems width
Width
Length
Weight
(mm)
(mm)
(mm)
(mm)
(m)
(m)
(kg/m2)
0.5
2.5
4.5
0.5
0.5
1
1.8
0.5
10
25
0.5
0.6
2
0.73
0.6
10
25
1
0.6
2
1
0.8
10
25
1
0.6
2
1.25

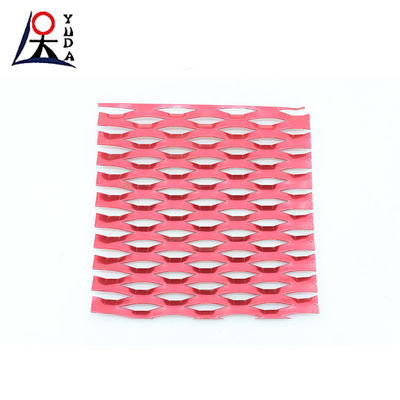

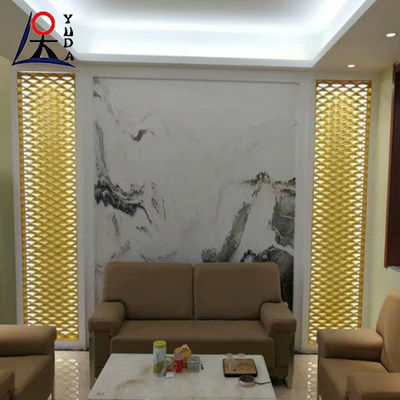

Customizable Galvanized Expanded Metal Mesh With Raised Diamond Holes Thickness 0.1 8mm Width Customers' Requirement 0Customizable Galvanized Expanded Metal Mesh With Raised Diamond Holes Thickness 0.1 8mm Width Customers' Requirement 1
