Stainless Steel Slope Protection Flexible Steel Wire Woven Netting

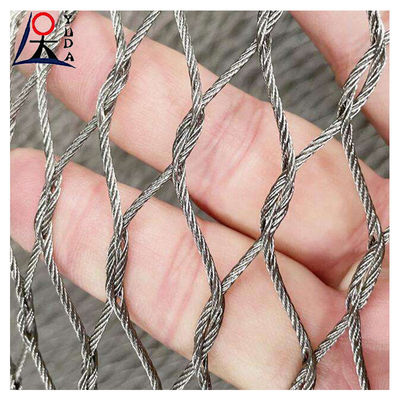

The stainless steel wire rope net has a flat surface and uniform mesh holes. It is woven with high-quality stainless steel wire and has a sturdy overall structure that can withstand large external forces without deformation or damage
Light weight, good flexibility, simple and convenient installation process, no need for complex tools and equipment, can greatly shorten installation time and cost, and can be cut and spliced on site according to actual needs to adapt to different size and shape requirements.
As a high-altitude anti falling object net, bridge fence, staircase handrail, etc., it can effectively prevent the occurrence of high-altitude falling object accidents, protect the safety of personnel and vehicles, and is widely used in high-risk areas such as old buildings and construction sites
There are mainly 304, 304L, 316, 316L, etc. Among them, 304 stainless steel has good corrosion resistance and oxidation resistance, and can be used for a long time in general environments; 304L is a low-carbon 304 stainless steel with better resistance to intergranular corrosion; 316 stainless steel has better corrosion resistance due to the addition of molybdenum element, especially with stronger corrosion resistance to seawater, saltwater, etc; 316L is a low-carbon 316 stainless steel, which further enhances its resistance to intergranular corrosion.
model
|
Steel wire mesh structure
|
Breaking force (KN)
|
Wire rope diameter (mm)
|
Mesh size (mm)
|
BN32120
|
7*19
|
7.38
|
3.2
|
120*208
|
BN2470
|
7*7
|
4.18
|
2.4
|
70*102
|
BN20100
|
7*7
|
3.17
|
2.0
|
100*173
|
BN1680
|
7*7
|
2.17
|
1.6
|
80*140
|
