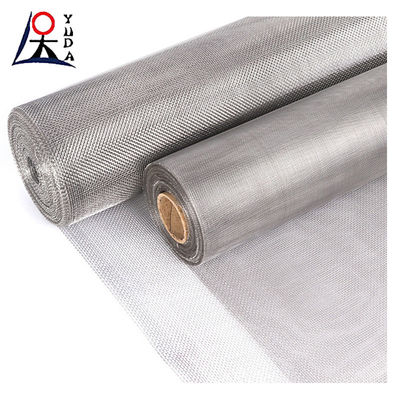

Ultra Fine Stainless Steel Woven Wire Mesh Screen Filter 304 316 Plain Weave Mesh Rolls
Stainless steel : Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting
and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.
T304 is the most common, but other are used in specific applications to take advantage of each
grade’s unique properties. The wire mesh made of stainless steel is extensively used ,chemical
industry, food industry and pharmaceutical industry.
Precision mesh: The stainless steel wire mesh has precise mesh, uniform structure, is not
easy to curl, and is easy to use. This enables it to maintain efficient performance during
screening and filtration processes.
Stainless steel wire mesh is made of high-quality stainless steel material, which has the
characteristics of being non-toxic, odorless, environmentally friendly, and healthy. This
material does not release harmful substances and odors, and has no impact on human health.
|
Material
|
SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
|
|
Wire diameter
|
0.018-2.03mm
|
|
Woven style
|
plain weave,twill weave,dutch weave, reversed dutch weave,crimped weave
|
|
Mesh counts
|
Plain weave wire mesh can be woven up to 400 mesh.
Twill weave wire mesh can be woven from 30 to 635 mesh.
|
|
Packaging Details
|
inner kraft, outside plastic cloth, put into wooden pallet or case.
|
|
|
|
|
|
Weight (LB)
/100 Square Foot
|
|
|
|
|
|
|
|
|
|
|
Absolute Filtration
Finess μm
|
Nominal Filtration
Finess μm
|
Plain Dutch Weave
Wire Mesh
|
|
0.014'' × 0.0126''- 0.0049'' × 0.0028''
|
|
|
Twill Dutch Weave
Wire Mesh
|
|
0.0098'' × 0.0079'' - 0.0015'' × 0.0010''
|
|
|
Usage: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and
corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also
sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali
environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as
screen mesh, electroplating industry as pickling nets
