Home /Products/Stainless Steel Wire Mesh/High Tensile Woven Stainless Steel Wire Screen Filter Square Mesh 316 With Plain Weave Style

High Tensile Woven Stainless Steel Wire Screen Filter Square Mesh 316 With Plain Weave Style

10 roll
MOQ
Determined by size and quantity
Price
High Tensile Woven Stainless Steel Wire Screen Filter Square Mesh 316 With Plain Weave Style
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stainless Steel Wire Mesh
Key Words: Stainless Steel Wire Mesh
Material: SUS302,304,316,304L,316L Etc.
Mesh: 1-3200mesh Can Custom
Width: 0.5m-3m Or Customized
Wire Diameter: Customized According To Customer Requirements
Type: Weave Wire Mesh
Weave Style: Plain Weave, Twill Weave, Dense Weave
Highlight:

Square Mesh Stainless Wire Screen

,

Plain Weave Stainless Wire Screen

,

Woven 316 Stainless Wire Screen
Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Stainless steel wire mesh
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 rolls/ day
Product Description

High Tensile Woven Stainless Steel Wire Screen Filter Square Mesh



material
304 stainless steel: It has excellent stainless steel corrosion resistance and good intergranular corrosion resistance. It has strong corrosion resistance in nitric acid below boiling temperature with a concentration of ≤ 65%. It also has good corrosion resistance to alkaline solutions and most organic and inorganic acids.

316 stainless steel: Due to the addition of Mo element, its corrosion resistance, atmospheric corrosion resistance, and high temperature strength are particularly good. It can be used under harsh conditions and is less susceptible to corrosion than other chromium nickel stainless steels in salt water, sulfur water, or brine. Compared to 304 stainless steel mesh, it is more resistant to marine and corrosive industrial atmospheres.

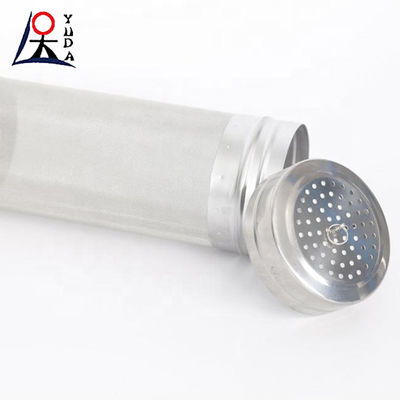

Stainless steel filter cartridge: The main materials are 304, 304L, 316, 316L stainless steel punched mesh, woven mesh, welded mesh, etc. It has the characteristics of high flow rate per unit area, suitable for low and high temperature environments, uniform pores, high filtration accuracy, corrosion resistance, heat resistance, pressure resistance, and good wear resistance. After cleaning, it can be reused.

Advantage of Stainless Steel Wire Mesh Fabric

● The filtering effect is very stable: high-quality raw materials are selected in the process of production, so that it is not
easily deformed during use;
● High strength: high-quality materials have high pressure resistance and can withstand large working strength;
● Cleaning is simple: the single layer of filter material has the characteristics of simple cleaning, especially suitable for
backwashing;
● High temperature resistance: can withstand high temperatures of about 480°C;
● Corrosion resistance: stainless steel raw materials themselves have high corrosion resistance and wear resistance;
● Easy to process: high-quality materials, whether it is cutting, bending, stretching, welding and other procedures can be done very well.



Product Name
Stainless Steel Woven Wire Mesh, Wire Cloth
Stainless Steel Grade
304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options
Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range
0.02 - 6.30mm
Hole Size Range
1 - 3500mesh
Weave Types
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
Mesh Width
Standard less than 2000 mm
Mesh Length
30m rolls or cut to length, minimum 2m
Mesh Type
Rolls and sheets are available
Production Standards
ASTM E2016 - 20


FAQ

Q: I have a sample of the mesh I need but I don't know how to describe it, can you help me?
A: Yes, please send us the sample and we will contact you with the results of our examination.

Q: Can I deform and further process the mesh?
A: Yes, any kind of deforming and processing is possible.

Q:Do you provide sample?is it free or extra ?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.

Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock or it is 10-20 days if the goods are not in

stock ,it is according to quanlity .

Q:What's your terms of payment?
A:30%T/T in advance ,balance paid before shippment.

High Tensile Woven Stainless Steel Wire Screen Filter Square Mesh 316 With Plain Weave Style 0High Tensile Woven Stainless Steel Wire Screen Filter Square Mesh 316 With Plain Weave Style 1
