Plain Weave Stainless Steel Wire Mesh Filter Ultra Fine Sieve Screen

10 roll
MOQ
Determined by size and quantity
Price
Plain Weave Stainless Steel Wire Mesh Filter Ultra Fine Sieve Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stainless Steel Wire Mesh
Key Words: Stainless Steel Wire Mesh
Material: SUS302,304,316,304L,316L Etc.
Mesh: 1-3200mesh Can Custom
Width: 0.5m-3m Or Customized
Wire Diameter: Customized According To Customer Requirements
Type: Weave Wire Mesh
Weave Style: Plain Weave, Twill Weave, Dense Weave
Highlight:

Sieve Screen Stainless Steel Mesh

,

Ultra Fine Stainless Steel Mesh

,

Plain Weave Fine Sieve Screen

Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: Stainless steel wire mesh
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 rolls/ day
Product Description

Weave Stainless Steel Wire Mesh Filter Ultra Fine Sieve Screen



Main categories

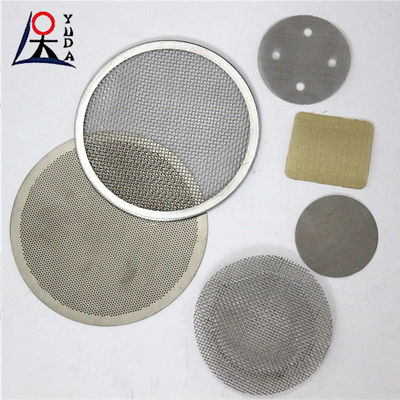

Stainless steel filter mesh: Machine presses rolled stainless steel into sheet shapes, including circular, square, rectangular, elliptical, triangular, hexagonal, etc. It is mainly used for screening and filtering plastic particles and food industry.

Edge wrapped stainless steel wire mesh: First, cut the rolled stainless steel wire mesh into sheets, then wrap and punch it, and finally polish it. Edge wrapping materials are generally selected from aluminum plates, iron plates, stainless steel plates, etc., which can be used in filtration applications that require higher strength and stability.

Five layer sintered mesh: Five layer stainless steel wire mesh is stacked in different structures and made through processes such as sintering, pressure, and rolling. It has a wide range of filtration accuracy, reliable filtration performance from 1 μ to 100 μ, stable filtration accuracy, good strength, easy cleaning, high temperature resistance, and corrosion resistance. It is suitable for various high-precision filtration and high temperature and high pressure environments.

Stainless steel filter cartridge: The main materials are 304, 304L, 316, 316L stainless steel punched mesh, woven mesh, welded mesh, etc. It has the characteristics of high flow rate per unit area, suitable for low and high temperature environments, uniform pores, high filtration accuracy, corrosion resistance, heat resistance, pressure resistance, and good wear resistance. After cleaning, it can be reused.



Product Name
Stainless Steel Woven Wire Mesh, Wire Cloth
Stainless Steel Grade
304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options
Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range
0.02 - 6.30mm
Hole Size Range
1 - 3500mesh
Weave Types
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
Mesh Width
Standard less than 2000 mm
Mesh Length
30m rolls or cut to length, minimum 2m
Mesh Type
Rolls and sheets are available
Production Standards
ASTM E2016 - 20


Plain Weave Stainless Steel Wire Mesh Filter Ultra Fine Sieve Screen 0Plain Weave Stainless Steel Wire Mesh Filter Ultra Fine Sieve Screen 1
