Vibrating Screen Double Woven Crimped Wire Mesh Lock Crimp Wire Mesh

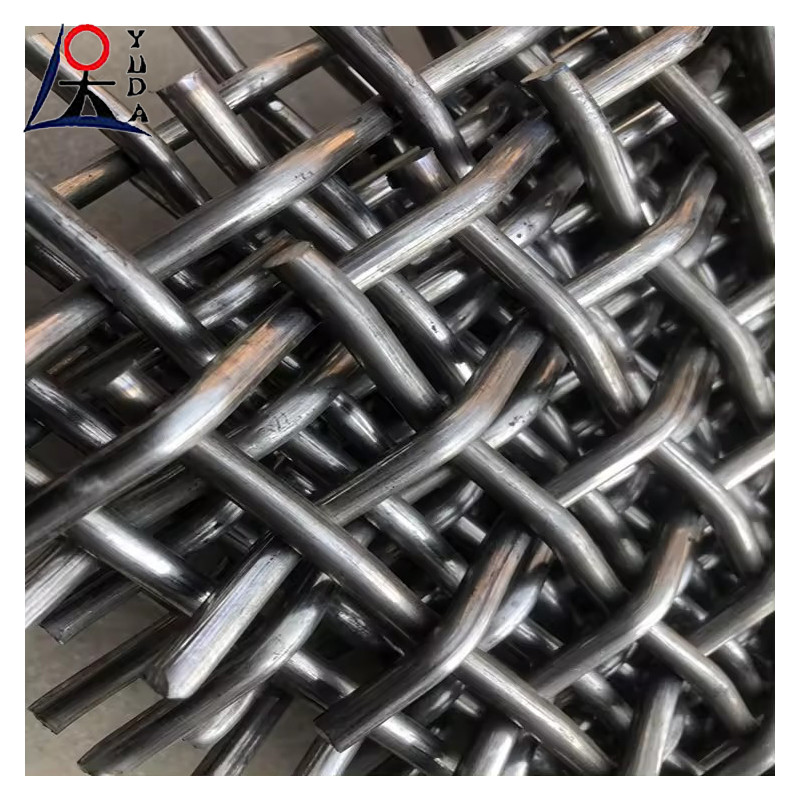

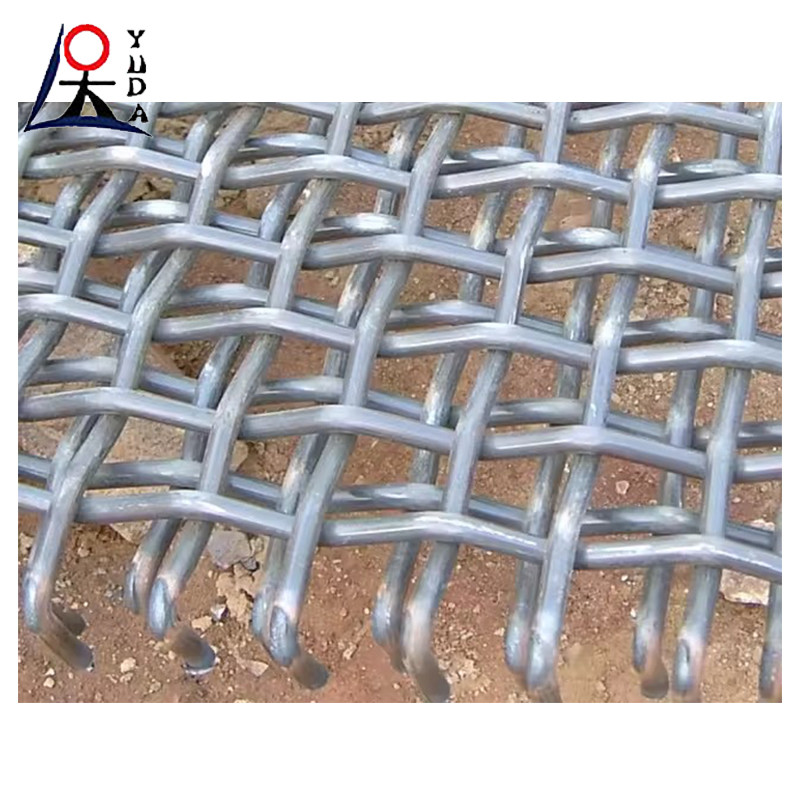

Crimped Wire Mesh is made of wires that are pre-crimped or bent before weaving. The pre-crimp
action enables the warp and shute wires to nest safely within each other avoiding any movement
among them and assuring accurate and consistent hole size.
Crimped woven wire mesh is a type of heavy mesh screen woven of crimped steel wire. Also known
as space cloth. The wires pre-crimped stay and maintain an accurate mesh structure with added
strength and rigidity. This rigid woven wire cloth is widely used in mining, guarding and other uses.
Materials: Galvanized steel, Stainless steel, black iron, high carbon steel, Mn steel.
Applications: industrial partition, agriculture, etc.
Spec: Mesh 1- 635
Diameter, 0.018mm - 2.03mm
Width, 0.3m - 8.0m(Super Width)
Length, 30m (Customized)
Style:
plain crimped, intermediate crimped, lock crimped, flat top crimped
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3200mesh
| SWG |
Diameter (mm) |
Mesh |
Aperture( mm) |
Weight (kg) |
| 6 |
4.8 |
1 |
20.6 |
11.5 |
| 8 |
4.05 |
2 |
9 |
16.5 |
| 10 |
3.2 |
2 |
10 |
10.5 |
| 12 |
2.6 |
3 |
5.9 |
10.5 |
| 14 |
2.0 |
3 |
6.5 |
6 |
| 16 |
1.6 |
4 |
5 |
5.5 |
| 17 |
1.4 |
5 |
5.1 |
5.0 |
| 18 |
1.2 |
5 |
4 |
3.6 |
| 19 |
1.0 |
6 |
3.2 |
3.0 |
| 21 |
0.8 |
7 |
2.8 |
2.3 |
| 22 |
0.7 |
8 |
2.5 |
2 |
Crimped Wire Mesh Purposes: mainly used for mine, MeiChang, construction, petroleum
chemical industry, construction machinery, etc
1. In acid, alkali environment conditions sieving and filtering.
2. Petroleum industry as mud mesh,.
3. Chemical fiber industry as screen mesh.
4. Plating industry as acid cleaning mesh.
Crimped Wire Mesh is a metal wire mesh product with multiple uses and advantages, which
has a wide range of application scenarios and can meet the needs of different industries.
Crimped mesh has various advantages, such as free raw materials, suitable for materials
with different properties including natural fibers, chemical fibers, synthetic fibers, etc; Easy
to make, different screens can be designed according to different patterns, and can be made
through ordinary welding or centralized welding, with a shorter production cycle. In addition,
the embossed mesh is also resistant to high temperature, acid, alkali, corrosion, and wear.
