65mn Steel Wire Crimped Weave Wire Mesh Vibrating Screen Mesh Heavy Duty Hooked

100 Square Meter
MOQ
Determine based on size and quantity
Price
65mn Steel Wire Crimped Weave Wire Mesh Vibrating Screen Mesh Heavy Duty Hooked
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Crimped Wire Mesh
Key Words: Crimped Mesh
Technique: Woven
Wire Diameter: Requirement
Hole Shape: Square Hole,as Per Requirement
Width: Customized
Surface: Galvanised / Stainless Steel / PVC
Application: Mining,coal Factory,rail Road,farm,BBQ
Highlight:

Vibrating crimped weave wire mesh

,

65mn crimped weave wire mesh

,

Heavy Duty crimped weave wire mesh

Basic Infomation
Place of Origin: CHINA
Brand Name: YUDA
Model Number: crimped wire mesh
Payment & Shipping Terms
Packaging Details: Customized according to buyer's requirements
Delivery Time: 3-10 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Square Meter/ day
Product Description

Vibrating Screen Mesh Heavy Duty Hooked 65mn Steel Wire Crimped Screen Mesh



Crimped Wire Mesh is made of wires that are pre-crimped or bent before weaving. The pre-crimp

action enables the warp and shute wires to nest safely within each other avoiding any movement

among them and assuring accurate and consistent hole size.



The embossed mesh can be woven using a pre bending and then forming method, including

locking weaving, bi-directional plain weave, unidirectional ripple weave, bi-directional flat weave,

bi-directional ripple weave, and rectangular hole weave.



Materials: Galvanized steel, Stainless steel, black iron, high carbon steel, Mn steel.

Spec: Mesh 1- 635

Diameter, 0.018mm - 2.03mm

Width, 0.3m - 8.0m(Super Width)

Length, 30m (Customized)

Style:

plain crimped, intermediate crimped, lock crimped, flat top crimped

Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3200mesh



SWG Diameter (mm) Mesh Aperture( mm) Weight (kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2





Crimped Wire Mesh Purposes: mainly used for mine, MeiChang, construction, petroleum

chemical industry, construction machinery, etc



1. In acid, alkali environment conditions sieving and filtering.

2. Petroleum industry as mud mesh,.

3. Chemical fiber industry as screen mesh.

4. Plating industry as acid cleaning mesh.



Crimped mesh has various advantages, such as free raw materials, suitable for materials

with different properties including natural fibers, chemical fibers, synthetic fibers, etc; Easy

to make, different screens can be designed according to different patterns, and can be made

through ordinary welding or centralized welding, with a shorter production cycle. In addition,

the embossed mesh is also resistant to high temperature, acid, alkali, corrosion, and wear.



The application scenarios of embossed fabric are very extensive, not only limited to the textile

printing and dyeing industry, but also widely used in industries such as clothing, shoe materials,

leather, home textiles, etc. It is mainly used to process various fabrics and materials, such as

cotton, linen, silk, wool, synthetic fibers and other textile fabrics, as well as leather, synthetic

leather, synthetic leather and other materials. In addition, embossed nets are widely used in

mining, petroleum, chemical, construction, mechanical accessories, protective nets, packaging

nets, barbecue nets, sintering furnace nets, hardware product nets, handicraft nets, vibrating

screens, baskets, food machinery nets, cookware nets, wall nets, grain, highways, railways,

and infrastructure fields.

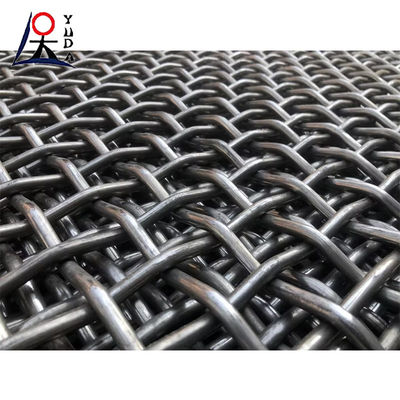

65mn Steel Wire Crimped Weave Wire Mesh Vibrating Screen Mesh Heavy Duty Hooked 0

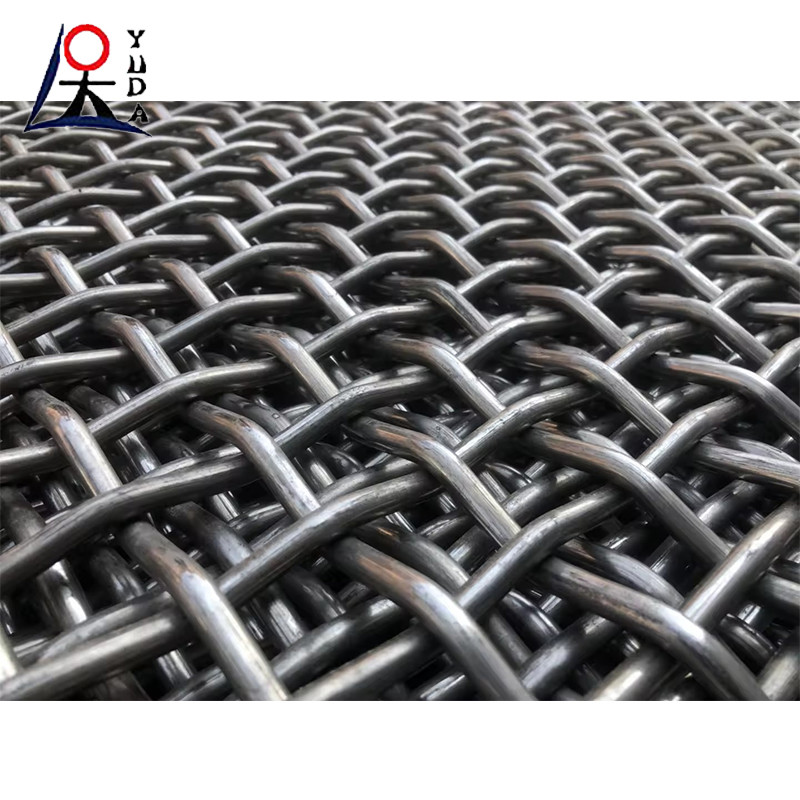

65mn Steel Wire Crimped Weave Wire Mesh Vibrating Screen Mesh Heavy Duty Hooked 1
