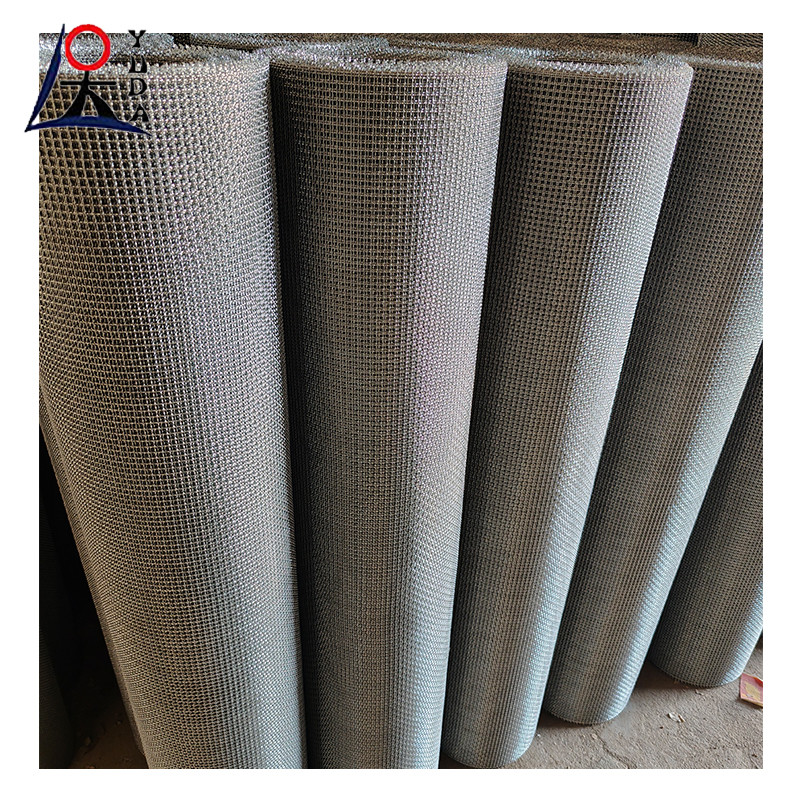

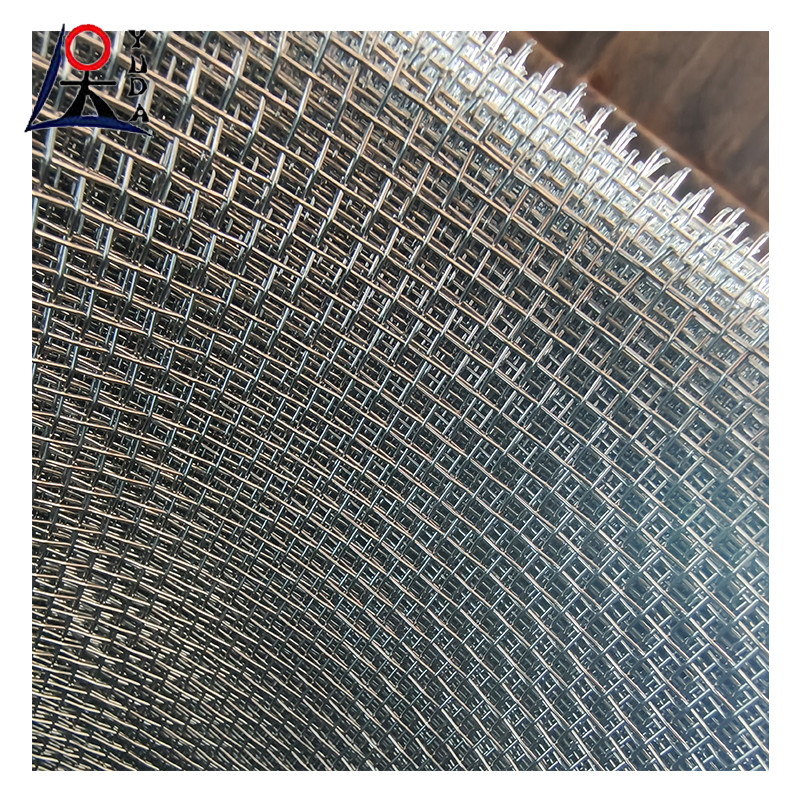

Crimped Wire Mesh Screen Mine Sieving Galvanized Vibrating Crimped Mesh
Material:SUS 201,302,304,304L,310,316,316L,321,etc. Application:Used as quarry screen, in mining,chemical,petroleum,coal
factory,construction and other industries ,infill panel, filter element, grill,etc
Weaving types:Plain Crimp,Lock Crimp,Flat Top Crimp,Intermediate Crimp,Triple Shute Crimp,Rigid Cable Crimp,Helix Crimp,Twill Crimp,etc.
weaving method of stainless steel micron filter wire cloth
plain weave wire mesh, twill weave wire mesh,dutch weave wire mesh and reverse dutch weave wire mesh
Stainless steel plain weave wire mesh, twill weave wire mesh,dutch weave wire mesh and reverse dutch weave wire mesh
according to the mesh hole size: there are supper fine wire mesh,crimped wire mesh ,coarse wire filter mesh
Sample can be supplied for checking and stesting width and length can be customized as per your requirement
plain weave type
square mesh hole shape
both warp and weft diameter are the same in per linear inch
precise mesh hole size for filtering
mesh count per 1 to 635 mesh, MIN mesh hole size is 20 micron
the dense the mesh,the fine the mesh,which is also called stainless steel wire cloth
supper thin thickness
specially used for pharmaseutical and lab test sieve
usually the size per roll is 1.02m/1.22m X30meter,or customized as per requirement
CHEMICAL COMPOSITION
| Material |
C≤ |
Mn≤ |
Si≤ |
S≤ |
P≤ |
Cr≤ |
Ni |
Mo |
N |
| S31803(SAF2205) |
0.03 |
2 |
1 |
0.02 |
0.03 |
21.0/23.0 |
4.50/6.50 |
2.50/3.50 |
0.08/0.20 |
| 00Cr22Ni5Mo3N |
PHYSICAL PROPERTIES
| Material |
σb(Mpa)≥ |
σs(Mpa)≥ |
δ(%)≥ |
Hardness (stiffness) |
| (HB) |
(HRC) |
| S31803(SAF2205) |
620 |
450 |
25 |
290 |
30.5 |
| 00Cr22Ni5Mo3N |
